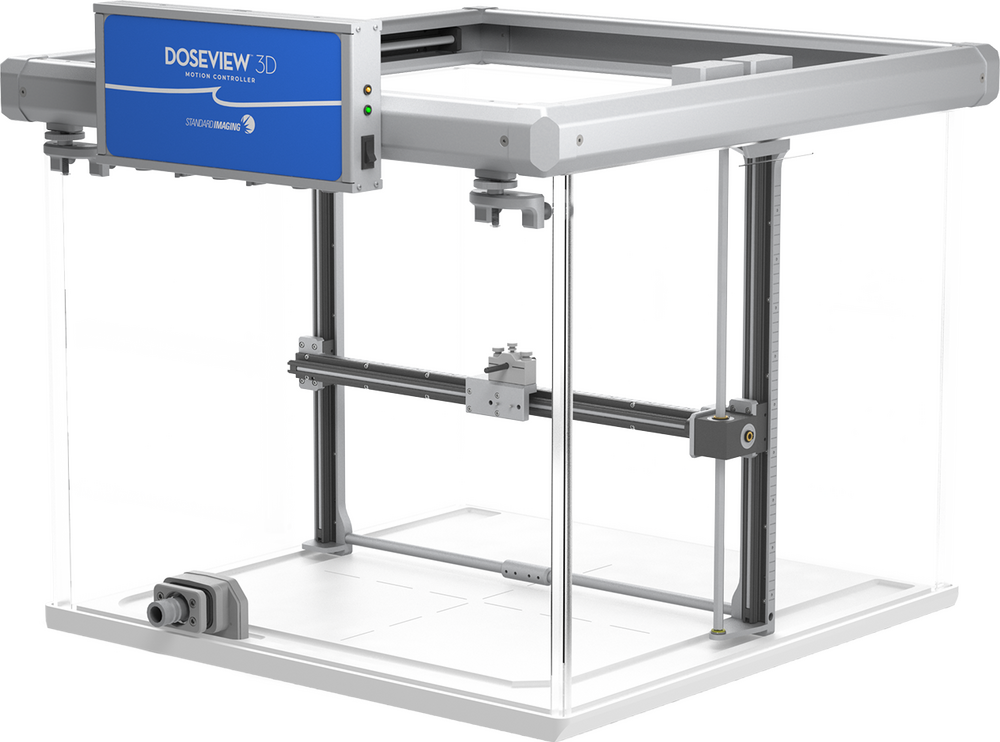

Manufactured with a rigid, aluminum frame and stainless steel leadscrews, the DoseView 3D provides a consistent platform for repeated QA testing. Meticulous construction ensures consistent measurement accuracy within ±0.1 mm per axis.

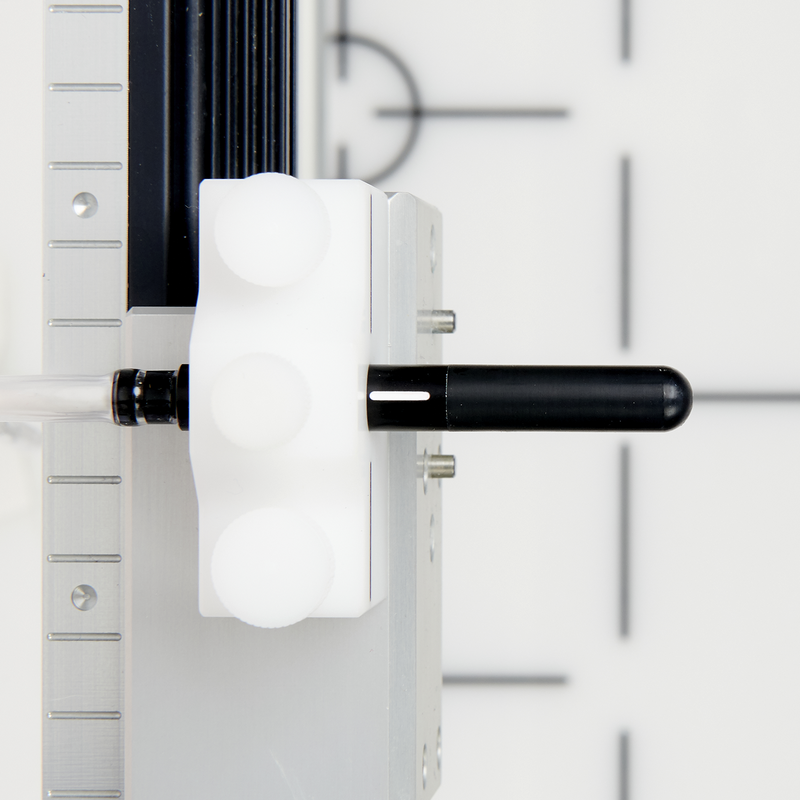

Swap detectors without resetting isocenter/origin with the Detector Alignment System. The system aligns the center of each detector.
The Cartesian coordinate system and ability to set isocenter to any point within the tank avoids rotational errors possible with cylindrical tanks.

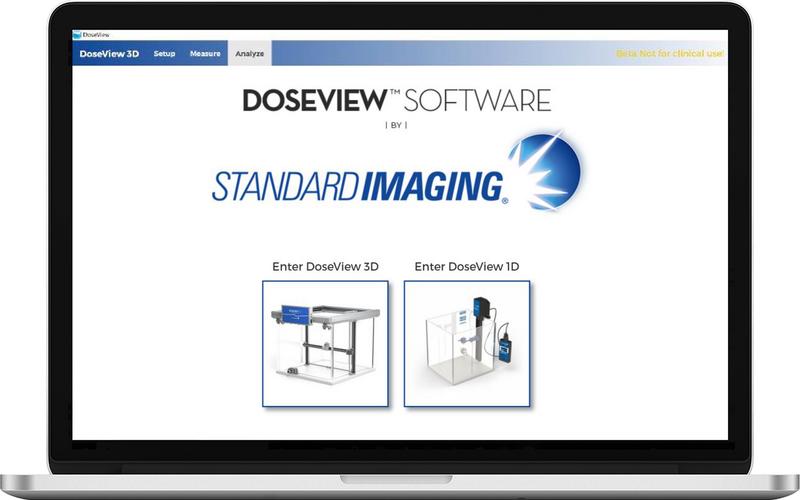

Easy left to right, top to bottom navigation, no hidden features, and intuitive menus for scan queue setup, measurement, and analysis.
Straightforward post-scan processing and metrics.

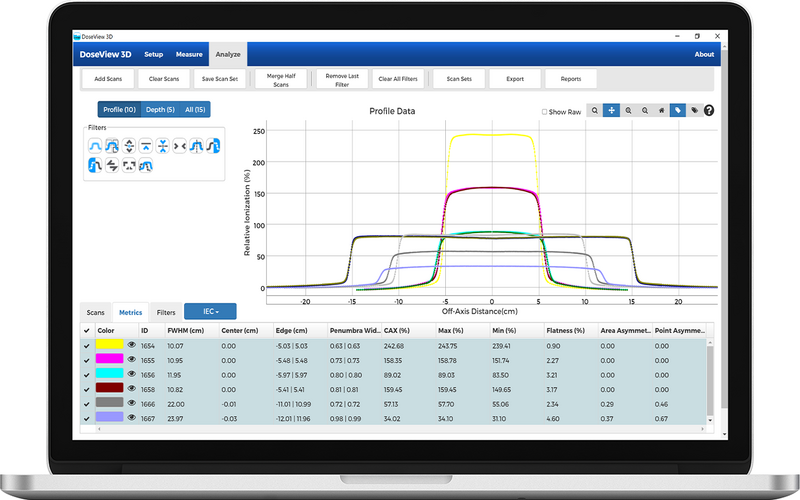

DoseView software provides the user multiple methods of scan comparison including visual overlays and gamma comparisons against the selected reference scans. These comparisons provide the user insight into Linac output changes over time or variations between matched machines.

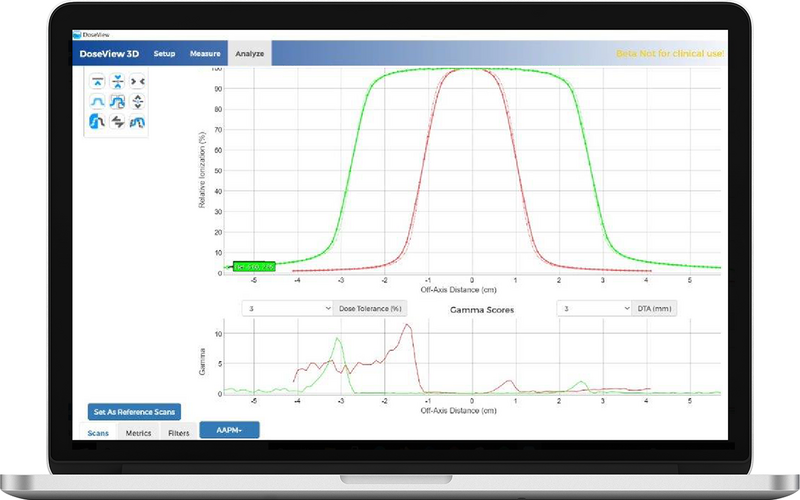

Scan comparison of user selected reference scans to selected scans of a similar nature. This includes visual as well as direct metric comparison. Gamma comparison in gamma graph to user selected reference scans. User-selected dose difference and distance to agreement values. Isodose Curve PDF Report Generation.

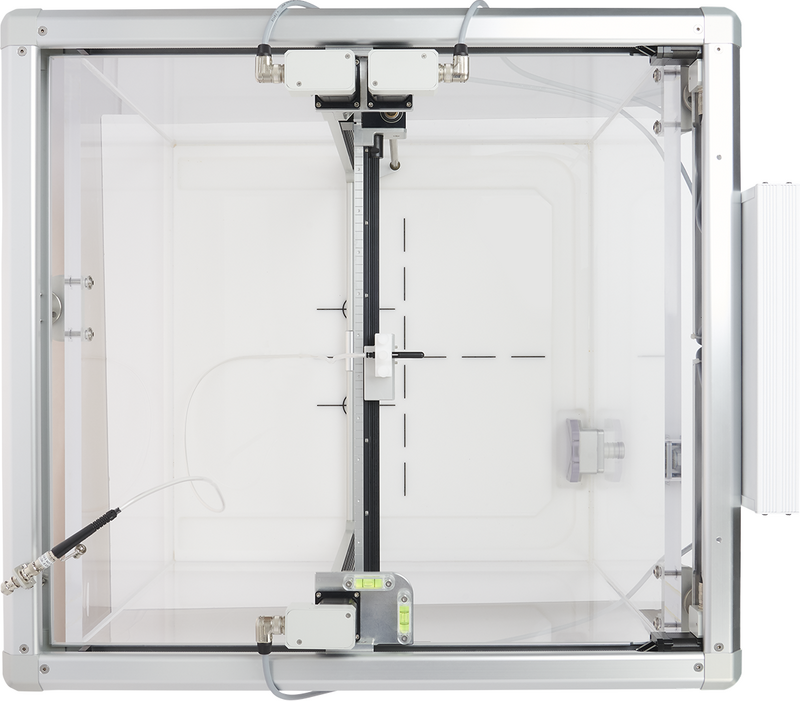

Careful attention to detail and the highest grade materials lend itself to 0.1mm accuracy throughout the system. Precise and uncomplicated 3-point leveling makes setup a breeze and provides results you can count on.
Long time proven electrometer experience and the highest quality hardware gives reliable measurements and allows for easy to analyze results. Automated features like scan ques and SmartSelects save time. Complete control over your scan parameters lets you fine tune your scanning for you specific needs.
Excellent raw data output, requiring minimal post scan processing, means reliable results. Fast Export in multiple formats and to numerous Treatment Planning Systems at no additional cost makes commissioning easy and economical.
The DoseView 3D is an outstanding scanning tank. Setup is simple and easy. Hopefully you are only using your scanning tank once a year. DV3D has made the set up so simple that after 12 months of not using the tank it still feels familiar. The software guides you through step by step on initializing the tank and preparing it for scanning in case you have forgot all the steps since last use. With its three point leveling arm, fine tune position, and auto field centering, setup can be achieved in less than 20 minutes.
| Motion Control System | |
|---|---|
| REF Number | DoseView 3D REF 92260 DoseView 3D Lift and Reservoir Cart REF 72260 |
| Measurement Speed | 50 mm/s |
| Positioning Accuracy | ± 0.1 mm per axis |
| Positioning Repeatability | ± 0.1 mm per axis |
| PC Communication | Wireless or wired via RS-232 |
| Control Method | PC or via wireless pendant |
| Water Phantom (Acrylic Tank Only) | |
| Outer Dimensions | [ length x width x height ] 692 mm x 683 mm x 542 mm |
| Scanning Dimensions | [ length x width x height ] 480 mm x 480 mm x 410 mm |
| Wall Thickness | 12 mm |
| Other | Replaceable Fill/Drain Port |
| Lift Cart and Reservoir | |
| Outer Dimensions | [ length x width ] 1247 mm x 762 mm |
| Vertical Range | 685 mm - 1185 mm (tank base to floor) |
| Water Pump | Electric fill, gravity drain |
| Water Capacity | 60 gal (227 liters) |
| Fill Speed | 6-7 min |
| Drain Speed | 16-20 min |
| Precision Positioning Platform | |
| X / Y Fine Adjustment | ±12.5 mm |
| Fine rotational adjustment | ±1° |
| Discreet engagement | 10°, 45°, and 90° intervals |
| DoseView 3D Electrometer | |
| Channels | 2 |
| Bias Voltage | 0, ±150 to 450 (VDC) in 50 volt increments |
| Range | 2 pC - 999,999 nC |
| Resolution | 10 fC |
| Connector Type | Triaxial BNC or TNC (BNC unless specified) |
| Exradin® A28 Ion Chamber | |
| Collecting Volume | 0.125 cc |
| Centroid of Collecting Volume | 4.47 mm from tip of chamber |
| Collector Diameter | 1.0 mm |
| Outside Diameter of Shell | 8.0 mm |
| Nominal Leakage | +/- 10 fA |
| Shell, Collector, Guard Material | Shonka air-equivalent plastic C552 |
| Waterproof | Yes |
| DoseView 3D Software System Requirements | |
| Operating System | Windows® 10 Professional, 64-bit Recommended |
| Processor | Intel® or AMD®, 350 MHz or greater |
| Memory | 256 MB or greater |
| Hard Drive | 30 MB or greater |
| Screen Resolution | 1024 x 768 or greater |
| CD-ROM Drive | 2X speed or greater |
| Connectivity | 9-pin serial RS-232 port or USB port with USB to RS-232 adapter |
