IVB 1000 Well Chamber

Tailored for Calibration of Long Source Trains

Ivb main 1400

Modality

Category

Ivb main 1400

Ideal Chamber for Long Source Trains

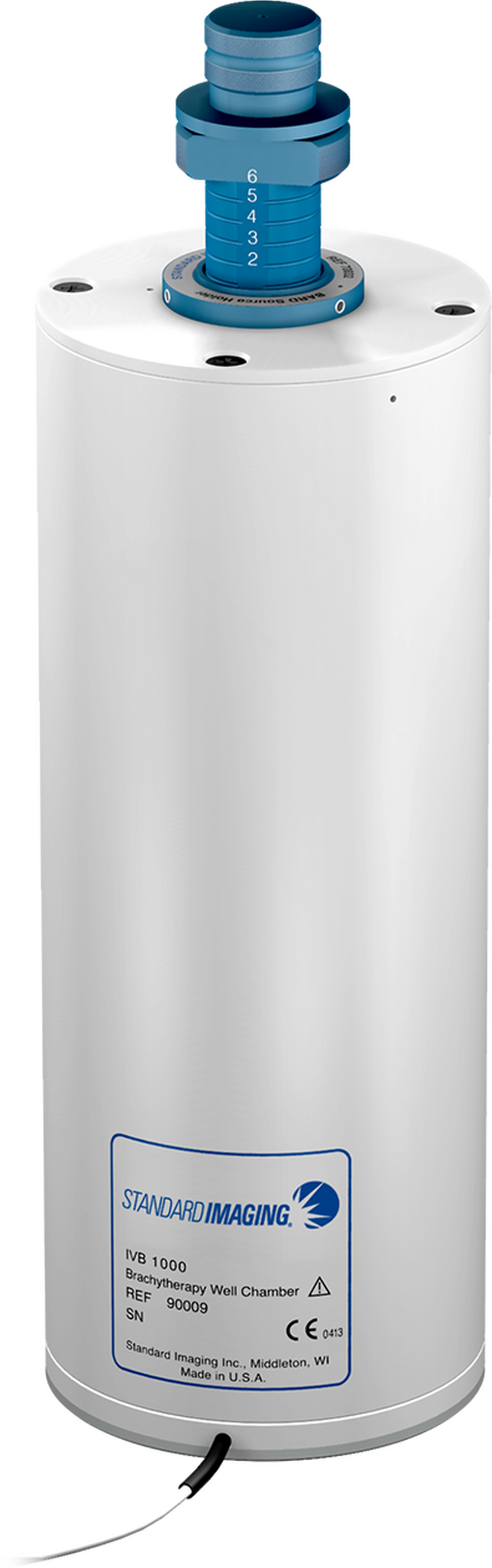

The IVB 1000 Well Chamber is similar to the HDR 1000 Plus but has an active length which is four times longer.

Why Perform Independent Verification?

AAPM TG-56, TG-40 and TRS-398 recommend independent verification of source strengths. Without independent calibration, centers in the U.S. may be forgoing reimbursement income.

Superior Functionality

An exceptionally long 100 mm sweet spot, unmatched in other chambers, accommodates long source trains and wires. Calibrates individual and multiple isotopes. Outstanding versatility, use one chamber for many isotopes. Source holders available for most existing sources.

Assurance is Confidence

Satisfies NRC requirements and TG-60 quality assurance requirements for IVB source strength verification. Precise and accurate calibration of HDR and LDR Iridium, Iodine, Palladium, Cesium, and Strontium brachytherapy source activities.

Download the IVB 1000 Well Chamber Datasheet

Learn More

Specifications

Jump to:
Dimensions
Height 25.9 cm
Diameter 10.2 cm
Insert Diameter 3.5 cm
Insert Height 22.4 cm
Weight 3.5 kg
Product Standards
IEC 60601-1, IEC 60601-1-2
Operating Parameters
Temperature 10 to 40 °C
Relative Humidity 20 to 80% non-condensing
Pressure 650 to 770 mmHg
Storage Parameters
Temperature -15 to 50 °C
Relative Humidity 10 to 95% non-condensing
Pressure 600 to 800 mmHg
