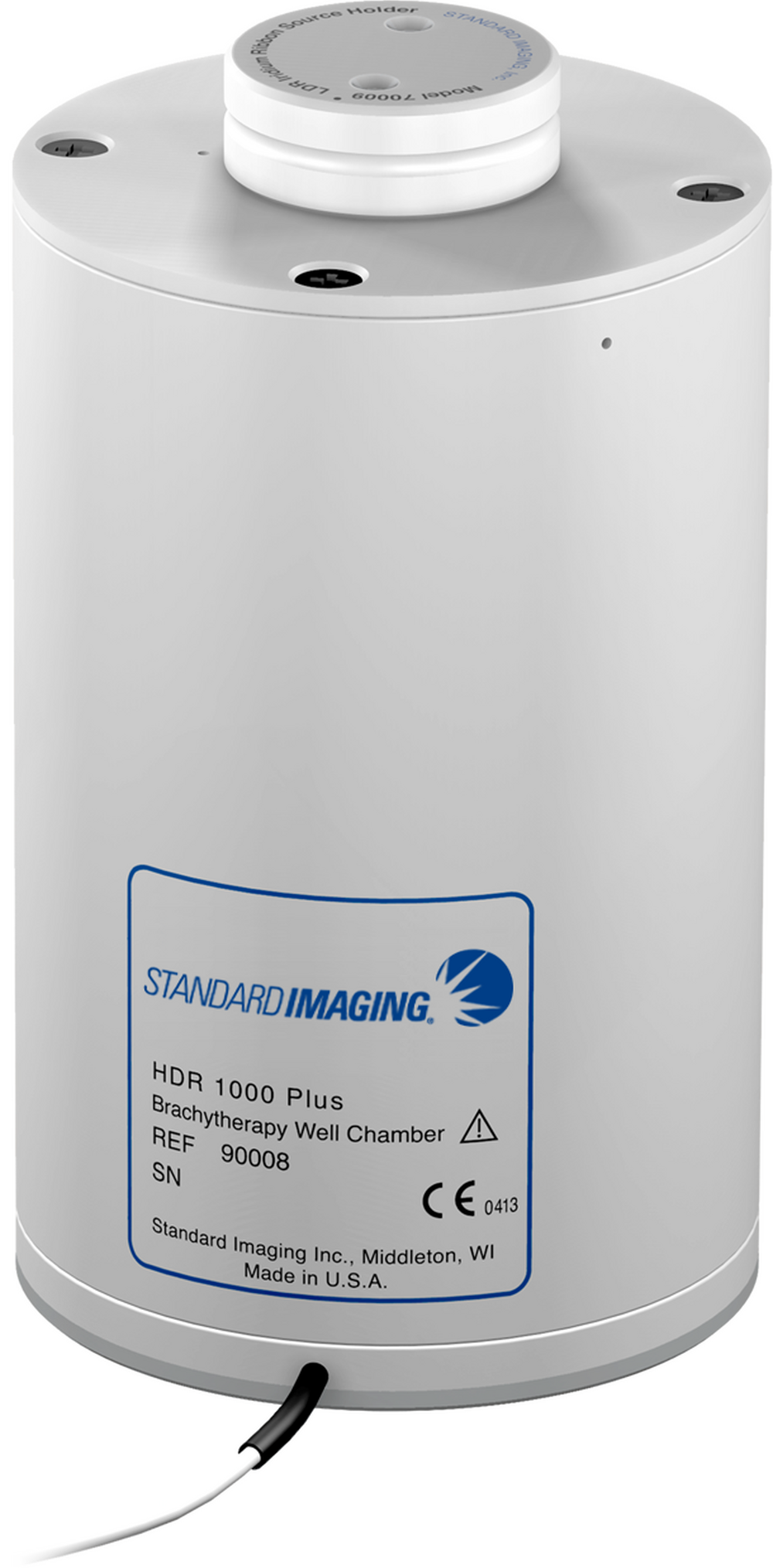

HDR 1000 Plus Well Chamber

Modality

Brachytherapy

Precise, Accurate: An Industry Standard

Independently Verify Prescribed Patient Dose

Confidence in Brachytherapy Source Calibration

Ideal for LDR and HDR brachytherapy.

Validated in over 50 scientific presentations and used by primary and secondary radiation standards laboratories worldwide. Air-communicating chamber, so there is no inaccuracy due to an undetected gas leak as in a pressurized chamber.

Perform Independent Verification

AAPM TG-56, TG-40 and TRS-398 recommend independent verification of source strengths. Without independent calibration, centers in the U.S. may be forgoing reimbursement income.

Assurance is Confidence

HDR 1000 Plus has been performance validated in more than 50 scientific presentations and is used by Primary and Secondary Radiation Standards Laboratories throughout the world. Precise and accurate calibration of HDR and LDR Iridium, Iodine, Palladium, Cesium, and Strontium brachytherapy source activities. Calibrates individual and multiple sources.

Download the HDR 1000 Plus Well Chamber Datasheet

Learn More

Specifications

Jump to:

Dimensions
Height	15.6 cm
Diameter	10.2 cm
Insert Diameter	3.5 cm
Insert Height	12.1 cm
Weight	2.7 kg
Product Standards
IEC 60601-1, IEC 60601-1-2
Operating Parameters
Temperature	10 to 40 °C
Relative Humidity	20 to 80% non-condensing
Pressure	650 to 770 mmHg
Storage Parameters
Temperature	-15 to 50 °C
Relative Humidity	10 to 95% non-condensing
Pressure	600 to 800 mmHg
