DoseView™ 1D

It's Too Easy to Use

Dv1d main 1400

Workflow

Modality

Task Group

Category

Dv1d main 1400

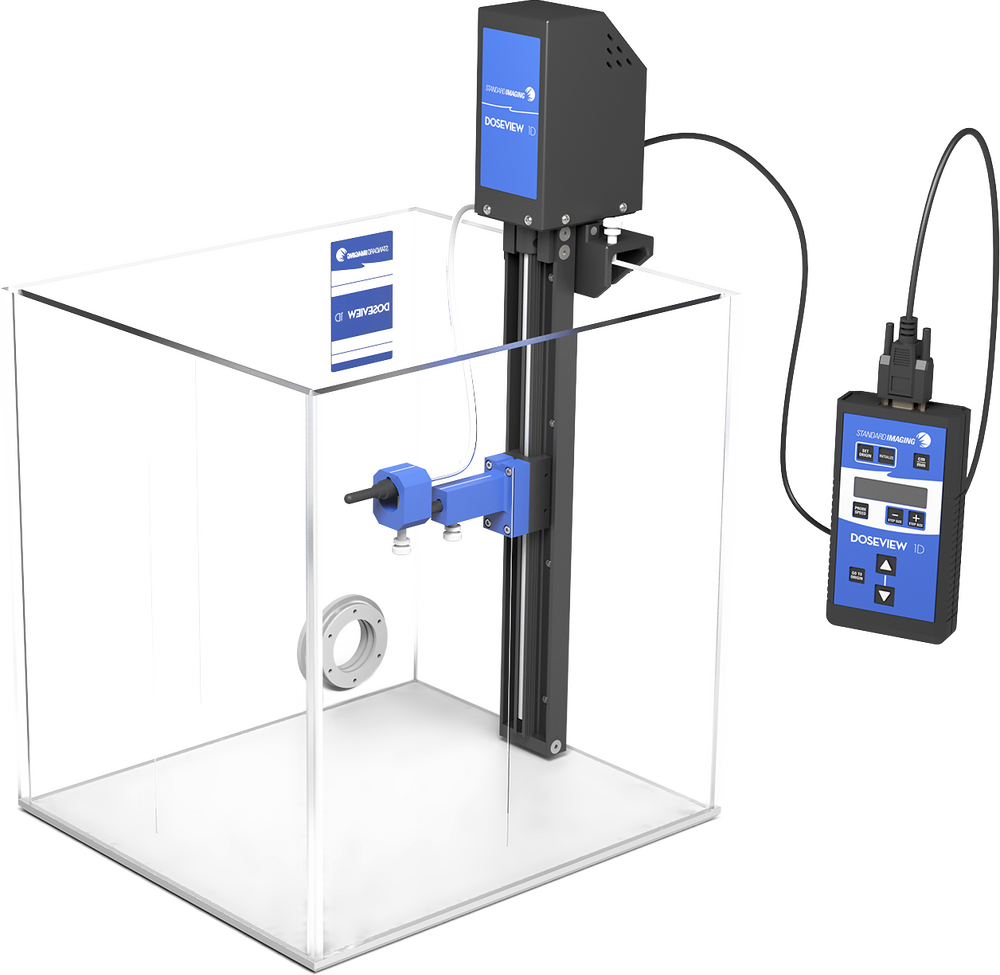

Finally. 1D and 3D Scan Integration.

Automatically acquire depth-dose measurements in a durable, TG-51 and TRS-398 compliant 1D water scanning system.

More Accurate Scans, Less Time

Superior 0.05 mm accuracy of position and repeatability over entire travel distance produced by leadscrew shaft. 3 point leveling simplifies precise detector placement at water surface.

Integrated, Customizable Data Collection

DoseView 1D Software seamlessly integrates the DoseView 1D, SuperMAX and/or MAX 4000 Electrometers for intuitive operation and testing. Features include: Adjustable step intervals, multiple acquisition per position, and real-time plotting of data

Automate Your Workflow

Intuitive queue generation for any size of routine.

Complete Integration with Water Phantom Data

DoseView Software is the first of it's kind to integrate 1D and 3D scanning capabilities.

Learn More
Better Software

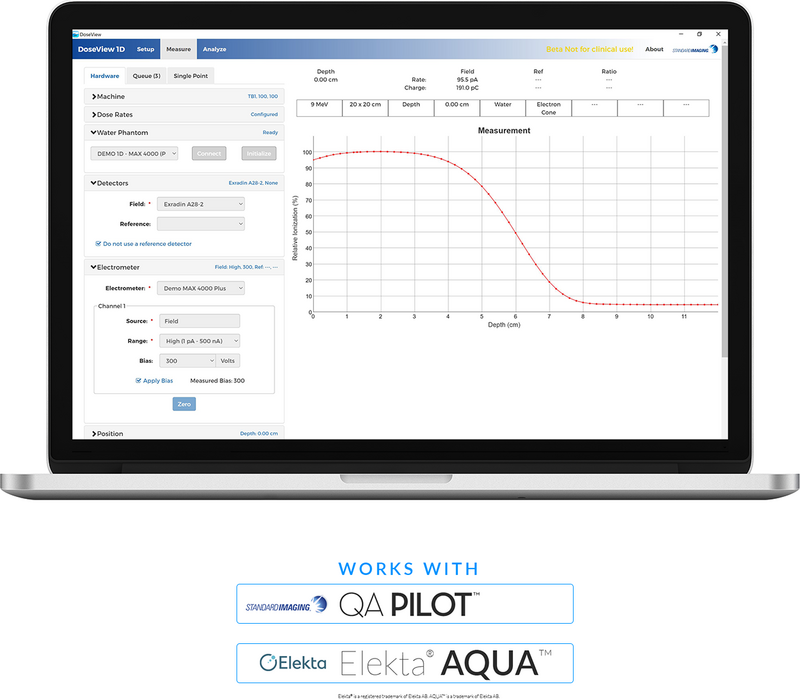

Automatic 1D Scanning Routines with DoseView 1D Software

Fully automate depth scan data collection with DoseView 1D and the SuperMAX™ or MAX 4000 Electrometers.

Learn More
Dv1d software7 1400

We have been using the upgraded DV1D arm along with the SuperMax electrometer and software. We love it! The ability to control the scan arm outside the room, script measurements at different depths, and copy/paste the results directly into Excel has significantly reduced the amount of time needed to perform monthly QA and TG-51. It’s like having the functionality of a 3D tank with the setup ease (and cost savings) of a 1D tank!

Mark Geurts, MS DABR
Medical Physicist/Associate Researcher , UW Health Carbone Cancer Center, Radiation Oncology Dept., Madison, WI

Download the DoseView 1D Brochure

Learn More

Specifications

Jump to:
1D Scanning Arm Dimensions
Height 48.26 cm (19.0 in)
Width 6.77 cm (2.67 in)
Length 9.44 cm (3.72 in)
Water Tank (REF 91800) Dimensions
Height 36 cm (14.17 in)
Width 30 cm (11.81 in)
Length 34 cm (13.39 in)
Water Tank (REF 91810) Dimensions
Height 36 cm (14.17 in)
Width 40 cm (15.75 in)
Length 42 cm (16.54 in)
Water Tank Material
Clear acrylic 0.95 cm (0.375 in)
Weight
1D Scanning Arm 1.36 kg (3 lbs)
Handheld Controller 0.23 kg (0.5 lbs)
Water Tank (ref 91800, empty) 6.35 kg (14 lbs)
Water Tank (ref 91810, empty) 10.43 kg (23 lbs)
Max Scanning Arm Travel
27.5 cm (10.8 in)
Ionization Chamber Holder Diameter Accommodation
Max 20 mm (0.79 in)
Min 6 mm (0.24 in)
Backscatter clearance at 25 cm depth
˜ 8 cm (3.1) including phantom base
Accuracy of Position
± 0.05 mm (0.002 in) over entire 275.00 mm
Repeatability of Position
± 0.05 mm (0.002 in) over entire 275.00 mm
Operating Conditions
Pressure 680 - 800 mm Hg
Temperature 10 - 40 °C
Relative Humidity 30 to 75%, non-condensing
Storage Conditions
Temperature -40 to 70 °C
Relative Humidity 0 to 95%, non-condensing
Cabling 100 ft extension cable provided (standard RS-232 configuration)
Power Requirements
AC Output 12 VDC @ 1.25 A
Optional Detector Brackets
PTW Markus® (ref 70850)
PTW Roos® (ref 70852)
Vertical Holder (ref 70851)
Product Standards: CE
