Specifications Material
Epoxy resins and powders to control density and radiation properties
608-831-0025 (International)
800-261-4446 (U.S.)
Workflow
Modality
- Linac ,
- CyberKnife ,
- TomoTherapy ,
- Stereotactic ,
- MR Linac ,
- Halcyon
Task Group
Category
Tested and Calibrated
Each batch of Virtual Water is tested at an independent calibration lab and verified to be within 0.5% of water at photon energies. It's not affected by changes in humidity or temperature and does not exhibit charge storage effects, a problem common in other water-equivalent materials.
Flatness
0.2 mm (0.008 in)
Density
1.04 g/cm3
Batch Consistency
±0.02% (measured)
Thicknesses Tolerance
±0.15 mm (0.006 in)
Length & Width Tolerance
±0.5 mm (0.02 in)
The Standard in Water-Equivalency

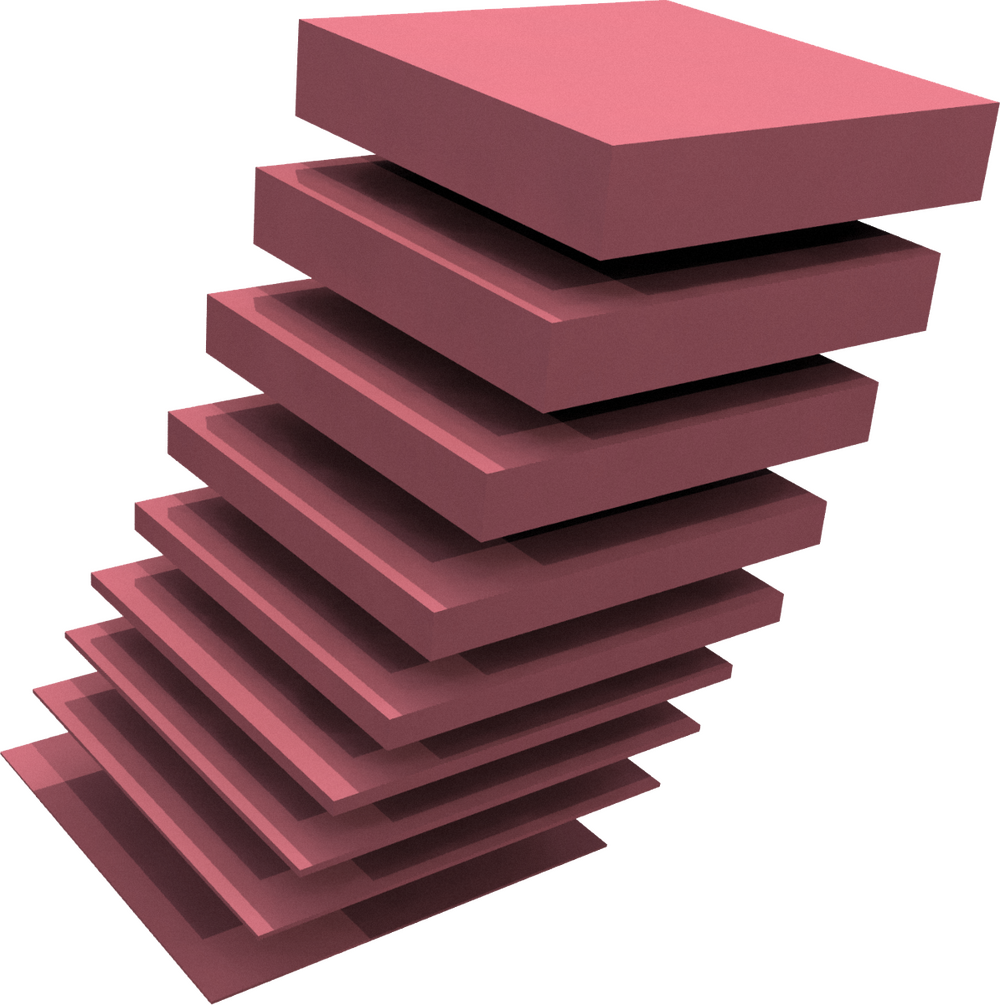

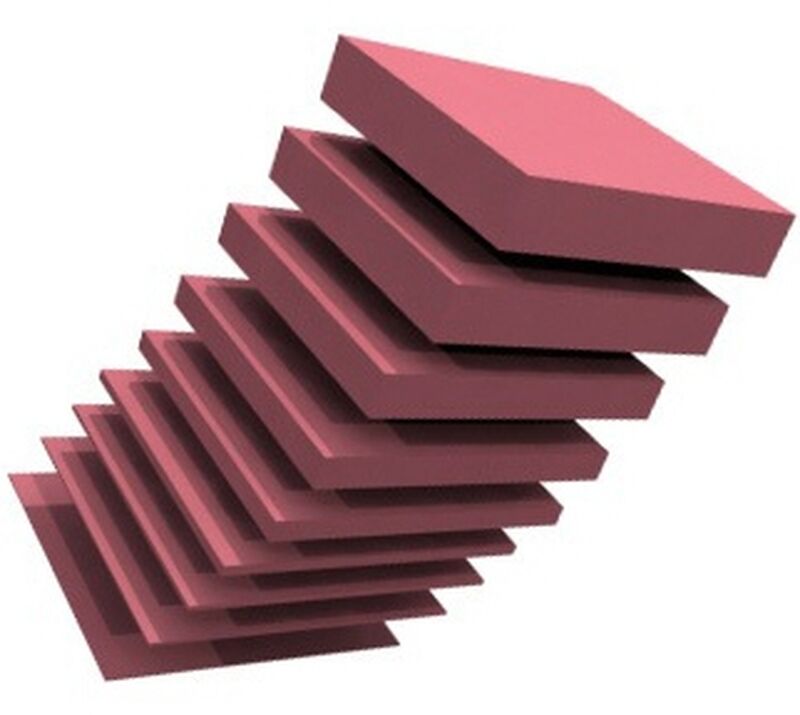

Slabs are made from water-equivalent material, and are developed to be free of contaminants and air. Slabs from this unique material are exceptionally strong and will not stick together when stacked or stored.
Key Features
- • Specifications Material: Epoxy resins and powders to control density and radiation properties
- • Flatness: 0.2 mm (0.008 in)
- • Density: 1.04 g/cm3
- • Batch Consistency: ±0.02% (measured)
- • Thicknesses Tolerance: ±0.15 mm (0.006 in)
- • Length & Width Tolerance: ±0.5 mm (0.02 in)
Characterization of the phantom material Virtual Water® in high-energy photon and electron beams
Specifications
Jump to:
| Virtual Water Specifications | |
|---|---|
| Mass Density (g/cm3) | 1.04 g/cm3 |
| Electron Density (e-/cm3NA) | 0.557 +/- 0.001 |
| Virtual Water/ Water Electron Density Ratio | 1.000 +/- 0.005 |
| Depth Ionization Relative-to-Water- Photons | 1.000 +/- 0.005 |
| Depth Ionization Relative-to-Water- Electrons | 1.000 +/- 0.005 |
| Water Equivalency | Photon & Electron Range -0.5% |
| Batch Consistency | +/- 0.02% Measured |
| Thickness Tolerance | +/- 0.15 mm (0.006 in) |
| Length and Width Tolerance | +/- 0.5 mm (0.02 in) |
| Flatness | 0.2 mm (0.008 in) |
| Sizes Available | 20 cm, 30 cm, 40 cm (Standard) |
| Thicknesses Available | 0.1 cm, 0.2 cm, 0.3 cm, 0.4 cm, 0.5 cm, 1.0 cm, 2.0 cm, 3.0 cm, 4.0 cm, 5.0 cm, 6.0 cm (Standard) |

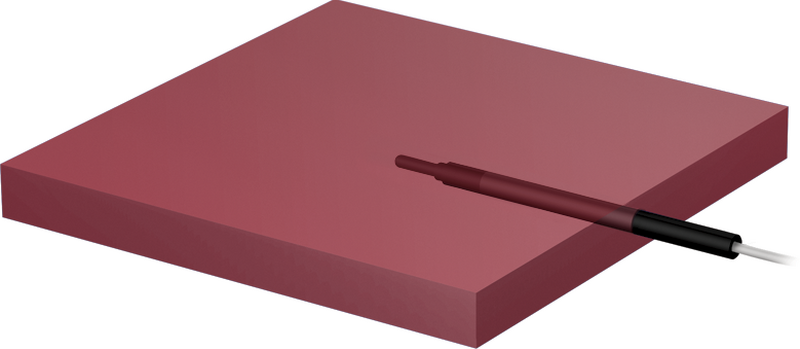

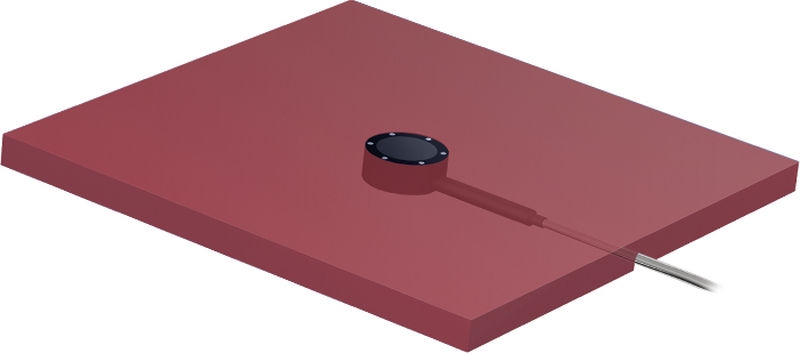

| Other Options | Milled for Parallel Plate Chamber or Drilled Cavity for Ion Chamber |
| Specifications Material | Epoxy resins and powders to control density and radiation properties. |
