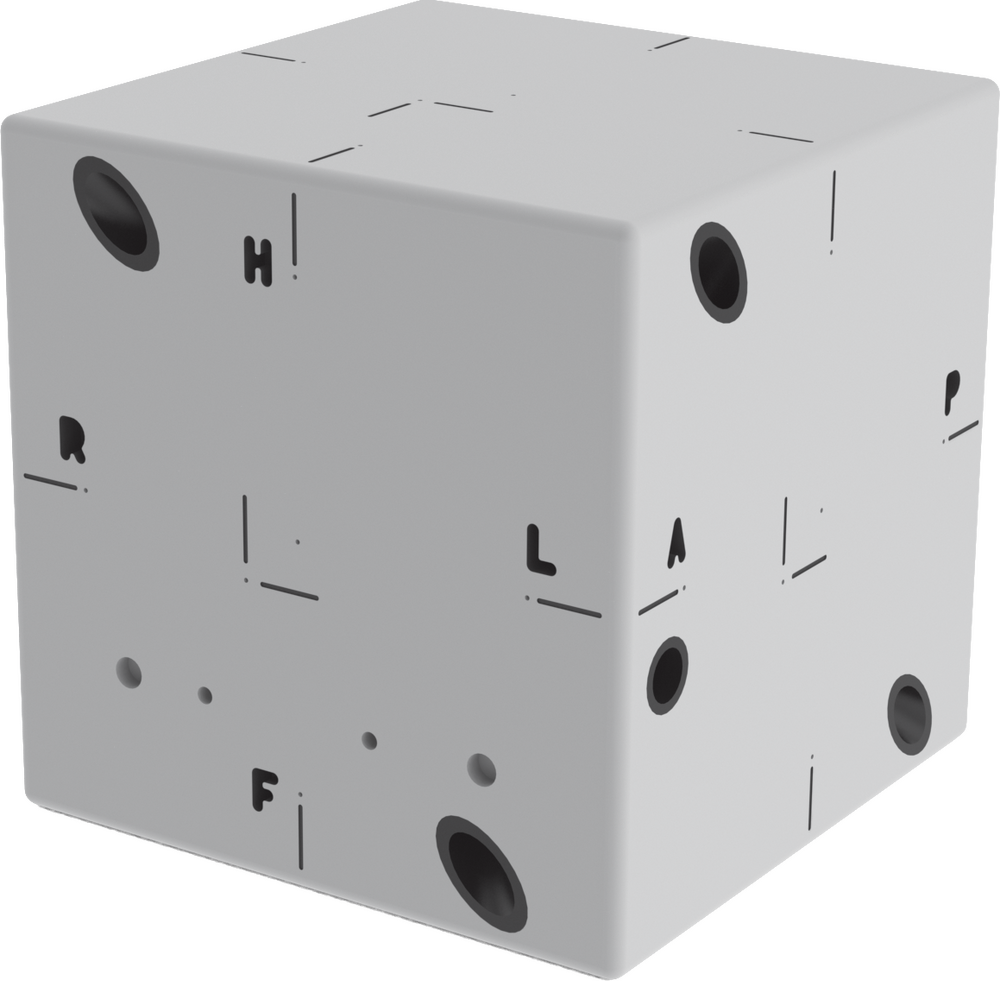

Establish mechanical stability of an image guidance system by verifying isocenter coincidence within 1 mm. A 6.4 mm sphere at the center of the phantom assists with virtual and physical graticule alignment checks.
The MIMI Phantom features additional cross-hair markers that are offset known distances from the true isocenter. Setting up the phantom aligned to these offsets allows you to verify the shifts prescribed by automatic table positioning systems.
The MIMI Phantom can be used to check 3D Cone Beam registration (CBCT, OBI, XVI) systems, MV/kV Isocentricity, Lasers and Couch Table Adjustments, Optical Guidance Systems, Virtual and physical graticules, and 6D couch pitch/yaw/roll when used with the HexaCheck.

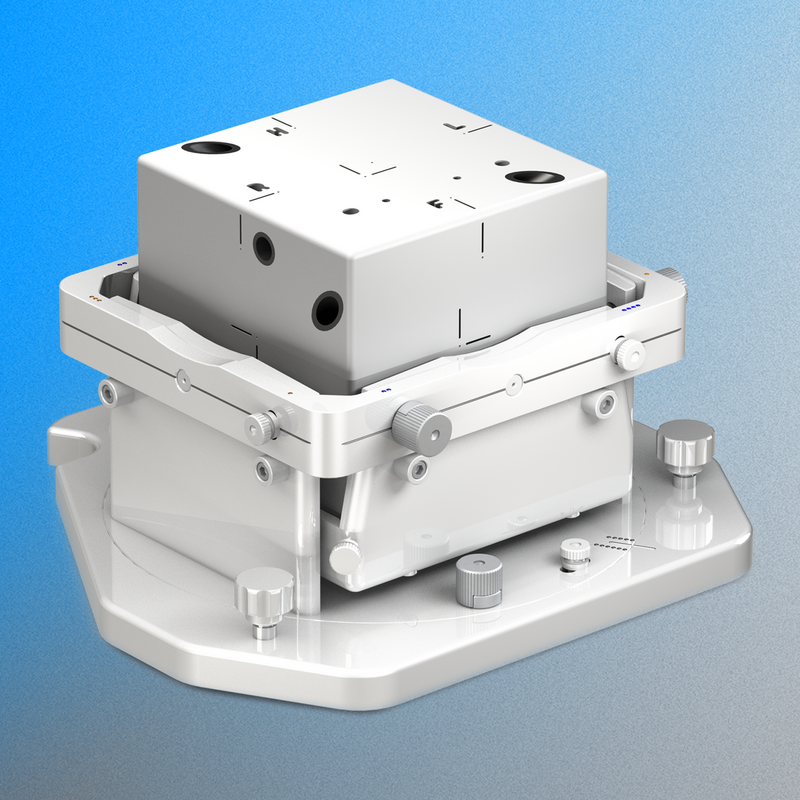

Designed exclusively for the MIMI phantom, the HexaCheck allows secure integration with the MIMI Phantom making it easy to perform 6D couch commissioning and QA.
The HexaCheck paired with the MIMI phantom is the simplest and most comprehensive 6D couch QA solution I have worked with. Since it is easy to set up & adjust, this becomes a great commissioning tool that gives the physicist confidence with their 6D couch QA.
| REF Number | |
|---|---|
| 91240 - MIMI Phantom | |
| Dimensions | |
| Height | 14 cm (5.5 in) |
| Width | 14 cm (5.5 in) |
| Length | 14 cm (5.5 in) |
| Weight | 2.8 kg (6.1 lbs) |
| Materials | |
| Cross-linked polystyrene for main phantom Black PVC Rods (bone equivalent) | |
