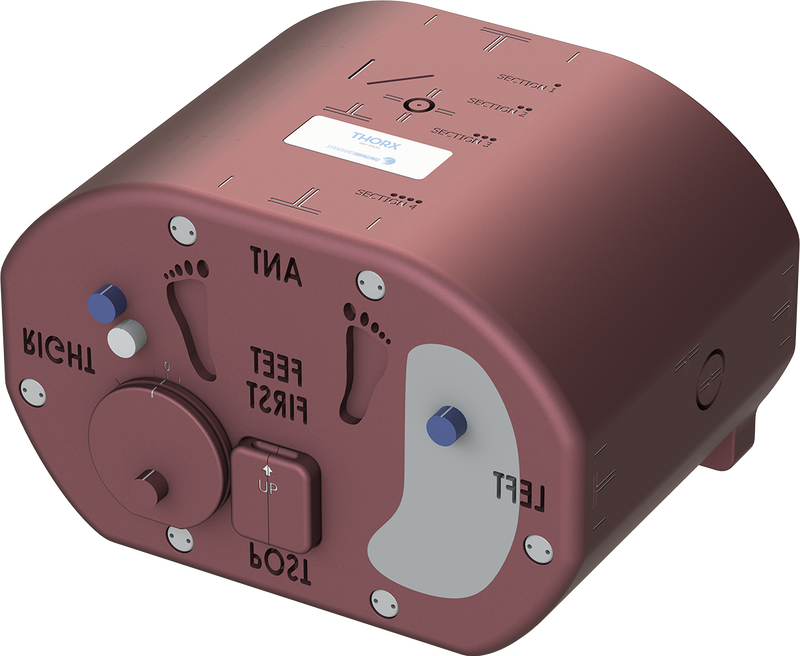

LUCY™ ThorX

End-to-End SBRT QA+ Phantom

Thorx new main 1400

Modality

Task Group

Category

Thorx new main 1400

ThorX Webinar: Your SBRT QA Game-Changer

Learn how to transform your SBRT QA process with LUCY ThorX Phantom—the all-in-one solution for simulation, planning, imaging, and delivery QA. Discover how its realistic evaluation capabilities and unmatched versatility can save you time while elevating your QA standards.

Learn More

Comprehensive Evaluation

Simulation, Treatment Planning, Imaging, and Delivery QA as recommended by TG-53, TG-66, TG-142 and AAPM MPPG guidelines.

Integrated Testing

4 primary modules that are assembled using rods, of a density similar to trabecular bone, around the periphery. Various internal structures and test objects as well as external engravings and fiducials are utilized for integrated testing.

Pseudo-Anthropomorphic Anatomy

Ribs, Vertebrae, Spinal Cord, Lung, and Kidney.

Dose Verification

Measure dose with ion chambers and film. Four detector cavities and targets for Multiple Met SBRT QA.

CT/SIM QA

  • Laser Alignment and Orientation for gantry walls and ceiling
  • CT Couch Orientation, indexing, motion, and position
  • Slice Thickness / Profile Width and Sensitivity Profile
  • CT Number Constancy
  • Field Uniformity and Image Noise
  • Spatial and Contrast Resolution
  • Virtual SIM with Hidden Target Localization, Contouring, and Laser Movement Accuracy
Learn More
Thorx new slices 1400

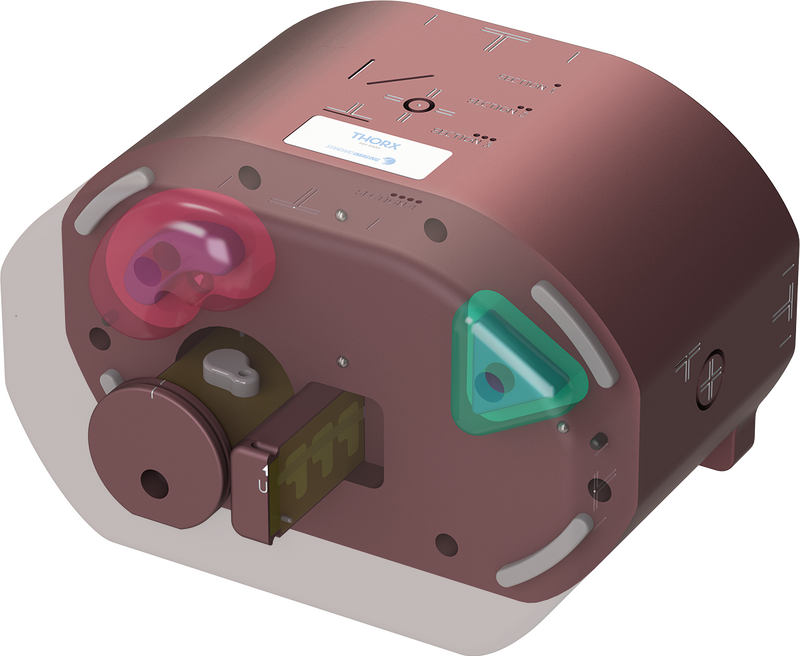

Treatment Planning QA

  • High-Contrast Kidney Target
  • High-Contrast Triangle Target
  • DICOM Transfer (Scan vs. Export Orientation, Position, Flip, etc.)
  • Spatial and Contrast Resolution
  • Slice Thickness
  • Field Uniformity and Noise
  • CT Number Constancy
  • In-Plane Spatial Integrity
  • Contouring, Margin Creation, DRR Spatial, Dose and DVH Accuracy
Learn More
Thorx new targets 1400

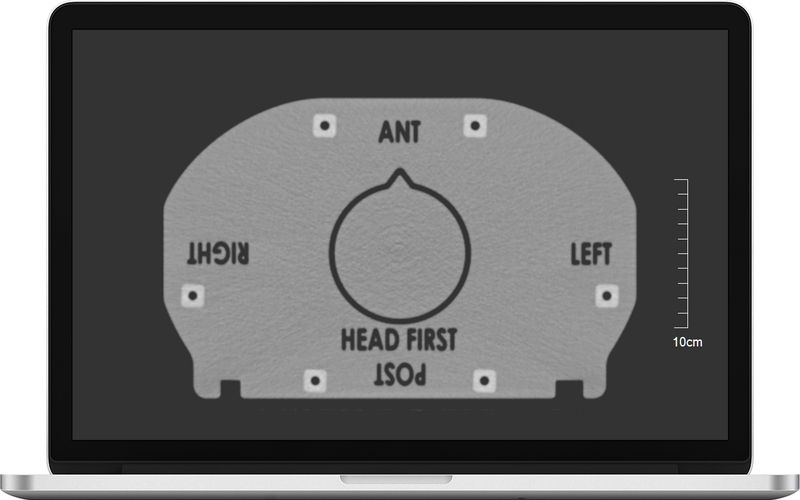

Linac Imaging QA

  • DICOM and Volume Transfer Accuracy
  • Spatial Integrity Accuracy
  • TG-142 Position/Reposition, Monthly
  • MV/kV Coordinate Coincidence
  • CBCT Distortion, Spatial Resolution, Contrast, Constancy, Uniformity, and Noise
Learn More
Thorx scan head 1400

Treatment Delivery QA

  • High-Contrast Kidney Target with Ion Chamber Measurement in Target and Margin
  • High-Contrast Triangle Target with Ion Chamber Measurement
  • Rotating Insert with Target bisected by Film Plane and Ion Chamber Measurement
  • Spinal Insert bisected by Film Plane
  • Target Localization Delivery Accuracy and Dose Verification
Learn More
Thorx new main 1400
Video

LUCY™ ThorX Phantom Overview

Key Features

  • • Phantom Dimensions: 251mm x 320mm x 210mm
  • • Primary Material: Virtual Water
  • • Weight: 13 kg
  • • Visual Laser Alignment
  • • Geometric targets
  • • Pseudo-anthropomorphic anatomy
  • • Multiple ion chamber cavities
Learn More
Thorx new main 1400

Download the LUCY ThorX Datasheet

Learn More

Specifications

Jump to:
Key Specifications
Phantom Dimensions 250.7 x 320 x 210
Material & Weight 13.15kg, Virtual Water
45 mm Sphere 45mm diameter, 50.96cc volume, Blue Water
Kidney Target 38.9cc Volume, Blue Water
Kidney Margin 241.75cc volume, Adipose Fat
Triangle Target 38.55cc volume, Blue Water
Triangle Margin 104.29cc volume, Lung
Left Lung 155.67cc volume, Lung
Insert Dimensions
Film Rod Insert 120.71mm L, 76.35mm D, Virtual Water
Film Rod Insert Target 10.09cc volume, Acrylic
Film Rod Insert Pre-Cut Film 104.3 x 65.2mm, Gafchromic Film
Spine Film Insert 90 x 44.6 x 50.8mm, Virtual Water
Spine Film Insert Pre-Cut Film 86.8 x 47.6mm, Gafchromic Film
Film Calibration Strip 76.2 x 25.4mm. Gafchromic Film
