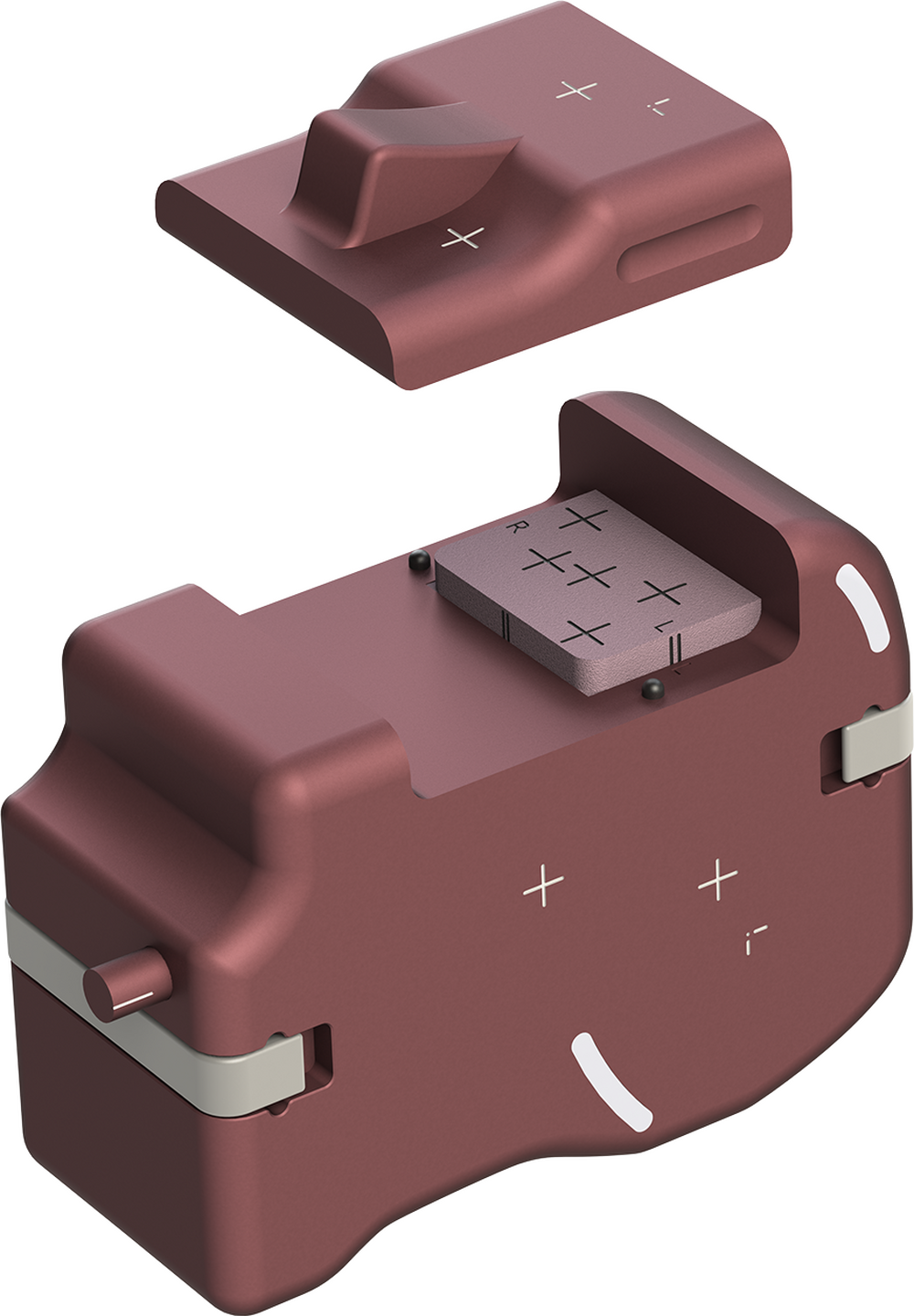

LUCY™ EA

Complete. Simple. Efficient.

Lucy ea new faceoff 1400 v2

Workflow

Modality

Category

Lucy ea new faceoff 1400 v2

Check out how the LUCY™ EA is utilized for HyperArc® Multiple Met SRS process validation

Learn More

The One to Get it Done

Perform SRS QA across multiple sites and machines with maximum repeatability using the LUCY EA Phantom.

Robust, Reliable, Repeatable

Tool less insert access in an open-mask phantom setup reduces variation, minimizes setup risk, and provides significant time savings to clinical staff.

Easy to Train, Easy to Maintain

Simple setup, effortless insert cavity access, and streamlined inserts allow users to successfully and quickly implement a robust end-to-end SRS QA program. Easily cross-train additional team members to maintain QA efficiency and excellence as your program grows.

What is Shared is Enhanced

Standardize your SRS QA protocols by taking advantage of LUCY EA’s key features and user-friendly design that provide the necessary precision, consistency and uniformity your organization requires.

Video

Simplify to Standardization: LUCY EA Phantom

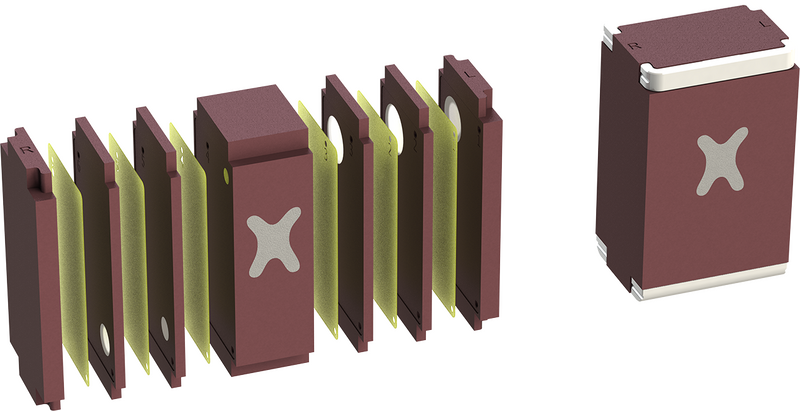

Multiple Target 3D Film Insert

  • Multiple-Mets/Single Isocenter QA
  • 4 Separate Targets with Ventricle Avoidance Structure
  • 6 Film Planes Verify Delivery to High and Low Dose ROIs
Learn More
Lucy ea new spheres 1400 v2

Multiple Target Winston-Lutz Insert

  • 5 Discrete Targets – One at Isocenter, 4 at Precise Off-Sets
  • Standalone Phantom or Phantom Insert Use
  • Position Verification, Isocenter Alignment, & End-to-End Hidden Target Tests
Learn More
Lucy ea new split mets 1400 v3

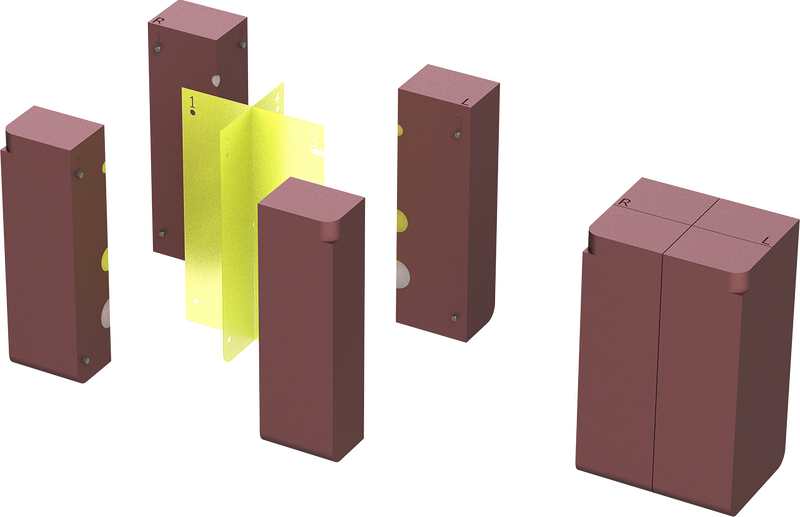

Orthogonal Film Insert

  • 3 Distinct Target Sizes
  • 0.5” (12.7 mm) Isocentric Target
  • All Targets Bisected by 2 Film Planes
Learn More
Lucy ea new quadfilm 1400 v2

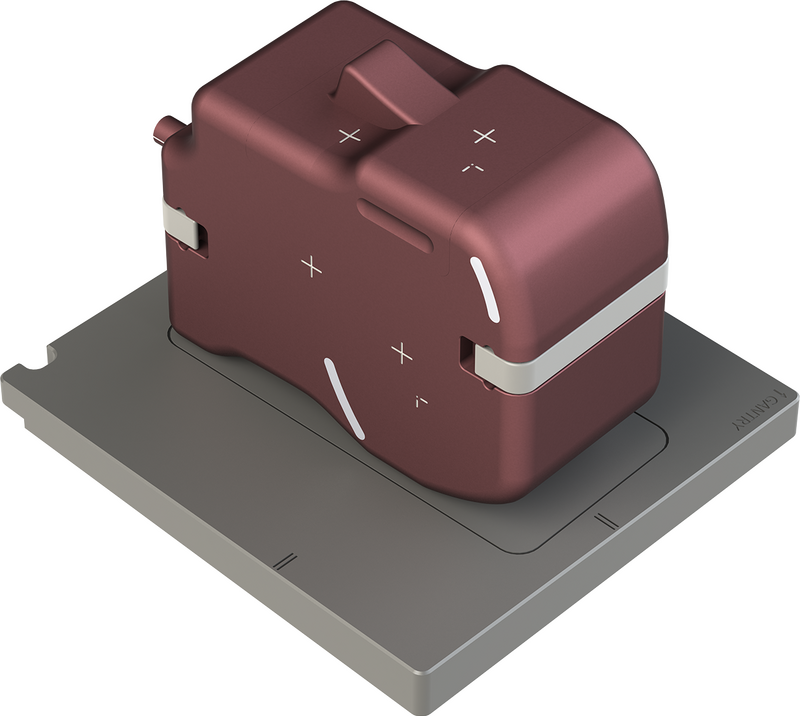

6DOF Shift Plate

  • Localizes to Treatment Couch Index Bar
  • Daily 6 DoF IGRT QA Tests
Learn More
Lucy ea new 6dof 1400 v2

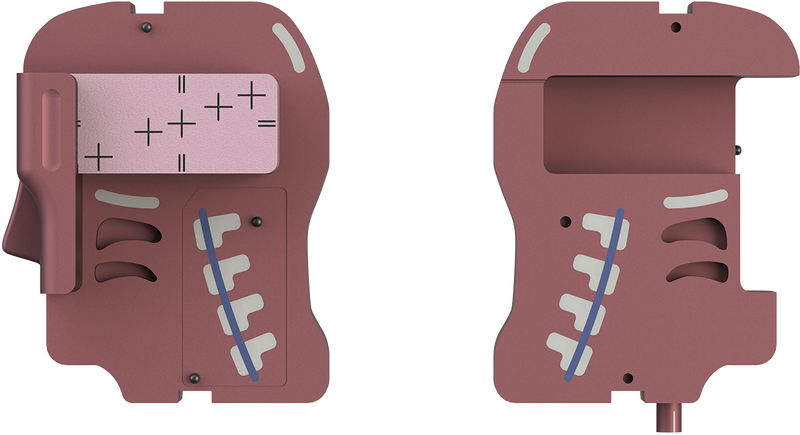

Key Phantom Features

  • Pseudo-anthropomorphic eye sockets, nose, forehead, and chin.
  • Easy localization heterogeneities: airway cavities, skull, vertebrae, and spinal cord.
  • Water-equivalent, SGRT trackable Virtual Water® material.
  • Extended multiple-mets QA capability with cranial and extra-cranial targets.
  • Toolless insert cavity access using open mask or direct couch setup.
Learn More
Lucy ea new faceoff 1400 v2

Specifications

Jump to:
Key Phantom Features
Pseudo-anthropomorphic Eye sockets, nose, forehead, and chin
Easy localization heterogeneities Airway cavities, skull, vertebrae, and spinal cord
Water-equivalent, SGRT trackable Virtual Water® material
Extended multiple-mets QA capability with cranial and extra-cranial targets
Toolless insert cavity access using open mask or direct couch setup
Phantom Specifications
Phantom Dimensions 244.5 x 116 x 197.8 mm (9.63" x 4.57" x 7.79")
Material & Weight Virtual Water, 5.3 kg (11.7 lbs.)
Insert Cavity Dimensions 130.3 x 80 x 60 mm (5.13" x 3.15" x 2.36")
Inserts
Multiple Target 3D Film Insert 4 Acrylic Targets Ø 7.9 mm, Ø 12.7 mm, Ø 15.9 mm, Ø 25.4 mm (0.31", 0.5", 0.63", 1.0")
Multiple Target Winston-Lutz Insert 5 Alumina Ceramic targets Ø 6.35 mm (0.25")
One (1) Solid Plug with Target Virtual Water®, Ø 15.6 mm (0.62") x 143.8 mm (5.66"), Alumina Ceramic Target Ø 6.35 mm (0.25")
One (1) Drilled Plug for Detector of Choice Virtual Water, Ø 15.6 mm (0.62")
Optional: Orthogonal Film Insert 3 Acrylic Targets Ø 6.35 mm, 12.7 mm, 15.875 mm (0.25", 0.5", 0.63")
Optional: 6 DOF Tilt Plate 304.8 x 279.4 x 19.1 mm (4.55" x 1.16" x 0.75") Weight: 1.5 kg (3.3 lbs.)
