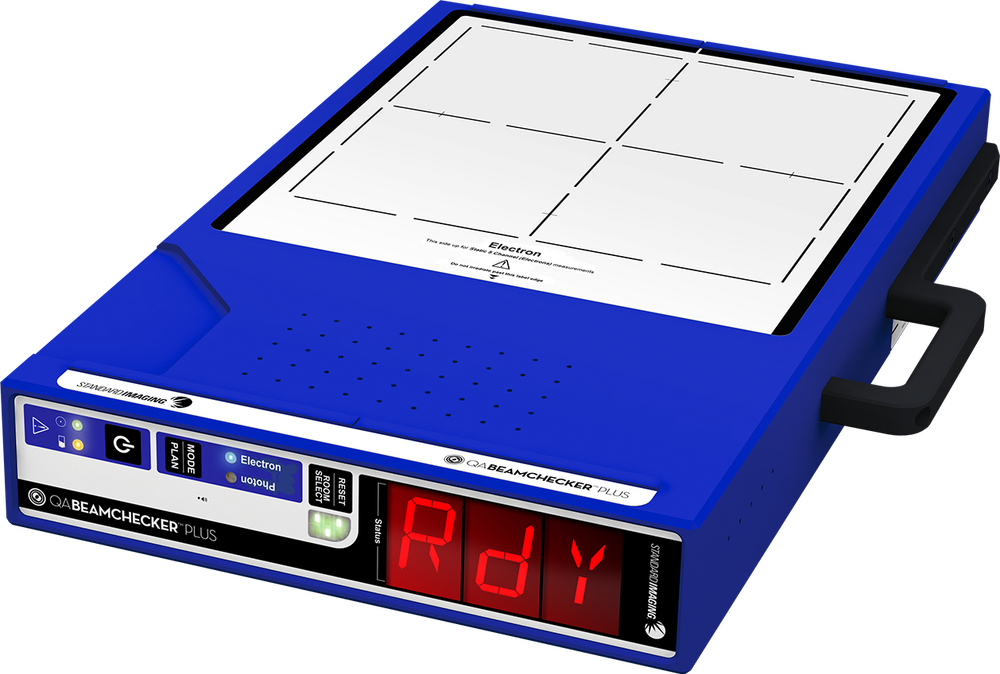

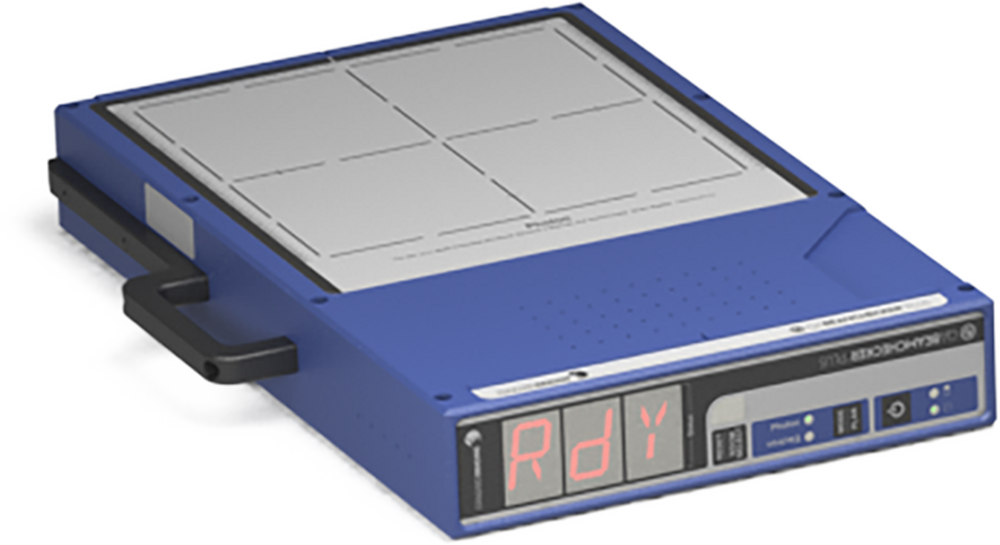

QA BeamChecker™ Plus

Workflow

Machine QA

Modality

Task Group

Reliable, Uncomplicated Daily QA

Perform routine daily QA measurements for traditional linear accelerators and rotational VMAT systems including those from Varian, Elekta, and Accuray.

Setup Made Simple

All energies in one setup means less prep time and more focus on what matters.

High Dose Rate Compatibility

Rotational and dynamic QA with dose rates up to 2400 MU/min.

Intuitive Communication Software

A straight out of the box solution with powerful reporting and easy to use communication software.

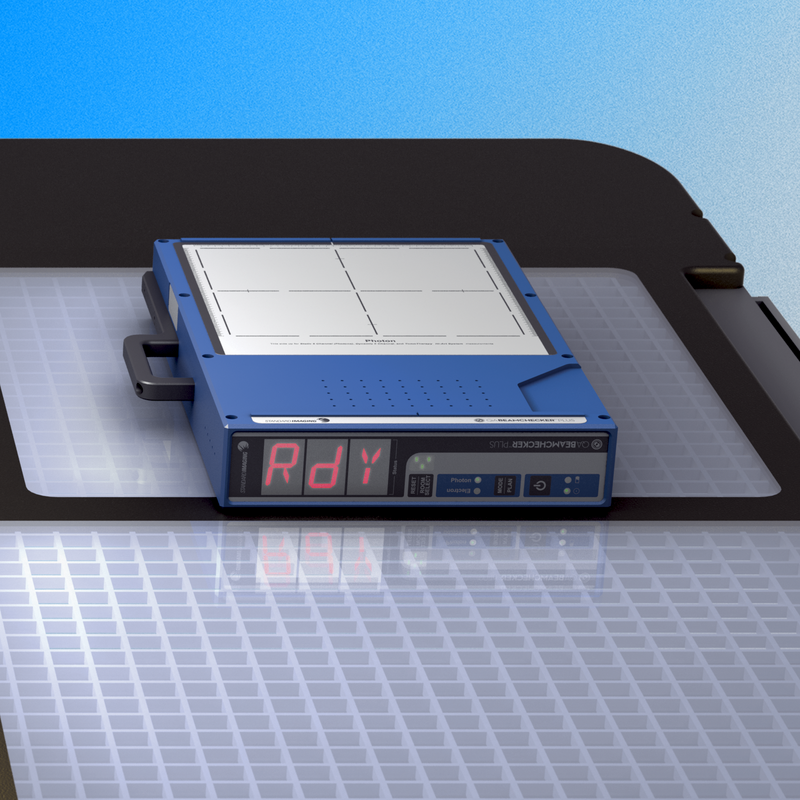

Software-free QA

Standard Imaging's expertise in ion chambers, phantoms and electrometers is the foundation for the innovative QA BeamChecker Plus. Integral build up and automatic energy detection allows the QA BeamChecker Plus to operate independently from its QA management software without the use of wires or cables. Radiation Therapists can deliver beam energies in any order, allowing for fast, intuitive morning QA in up to 9 treatment rooms.

Learn More

Video

QA BeamChecker Plus Overview

This video demonstrates the basic usage of the QA BeamChecker Plus, including placement on the couch, collection and automatic detection of the energy, and downloading the data for review.

Download the QA BeamChecker Plus Brochure

Learn More

Specifications

Jump to:


8 Vented Ionization Chambers, Fully Guarded	One center detector // Four quadrant detectors (7.5 cm from center) // Three energy identification chambers
Chamber Volume	0.6 cm3
Parallel Plate Separation	4.0 mm
Collection Electrode	1.39 cm diameter
Inherent Water-Equivalent Buildup	PHOTONS: 3.5 cm // ELECTRONS 1.5 cm
Supported Energies	PHOTONS 60Co to 25 MV // ELECTRONS 6 MeV to 25 MeV
Multiple Vault Capability	Up to 9 rooms, any combination of linear accelerator or rotational systems
Temperature and Pressure Measurement	Precision sensor on board, automatic compensation
QA BeamChecker Plus Dimensions
Height	6.15 cm (2.42 in)
Width	30.86 cm (12.15 in)
Length	40.64 cm (16 in)
Weight	5.0 kg (11 lbs)
Power/Data Cradle Dimensions
Height	7.16 cm (2.82 in)
Width	10.16 cm (4.0 in)
Length	29.21 cm (11.50 in)
Weight	1.8 kg (4 lbs)
Features
Light Field Alignment	20 cm x 20 cm alignment grid for easy setup
TomoTherapy Alignment	Three 2 mm embedded lead BBs, top, rear, side alignment marks
Real Time Clock	Date and time stamp for all measurements
Internal Memory	Store 512 data points before transfer required
Power/Data Cradle	Two 9 pin serial cables provided, 7.6 m (25 ft) and 33 m (100 ft)
Battery	1.3 Ah SLA, approximately 4 hours continuous use, user replaceable
Charger Input	90 - 240 VAC, 50-60 hz, IEC 60601-1 approved wall mounted power supply
Peripherals	CD-ROM Drive, One available serial port
Options
Gantry Mount (REF 70500)
Additional Power/Data Cradle (REF 70502)
Serial to USB adapter (REF 70503)
Precision TomoTherapy Leveling Platform (REF 70505)
Bluetooth Adapter Kit (REF 70504)
Software/Computer Requirements
Operating System	Windows® 10 Professional, 64 bit recommended
Processor	Dual Core, 1 GHz; Quad Core, 2 GHz Recommended
Memory	32-bit OS: 2 GB, 4 GB Recommended 64-bit OS: 4 GB, 8 GB Recommended
Hard Drive	32 GB or greater, 1 GB free space for initial software setup. 25% free space recommended.
Screen Resolution	1024 x 768 or greater // Optical Drive — Compact Disc (CD) or Digital Versatile Disc (DVD)
Connectivity	9 pin RS-232 serial port and IPv4 LAN, 100 Mbit/s or greater
