MAX Elite Electrometer

Max elite main v2

Workflow

  • Electrometers

Modality

Task Group

Category

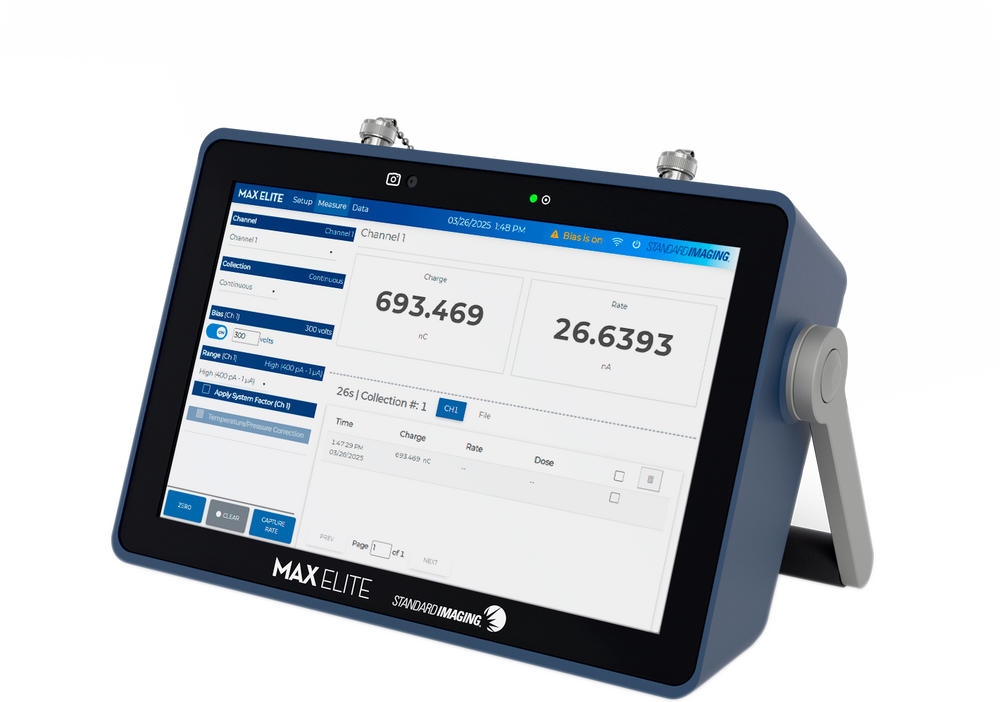

Max elite main v2

Specifications

Key Features
Intuitive software interface.
Largest capacitive touch screen on market.

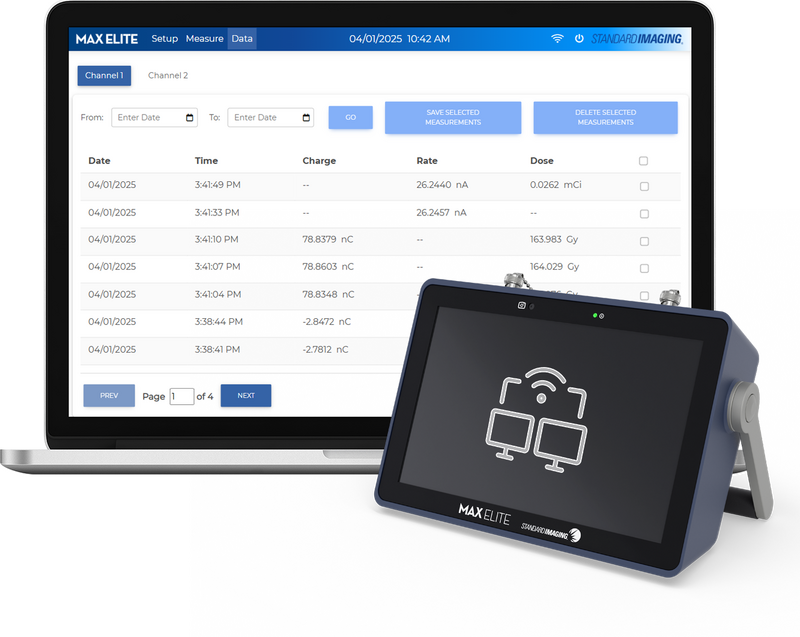

Remote operation capability.
Fast-settling and fast-zeroing.

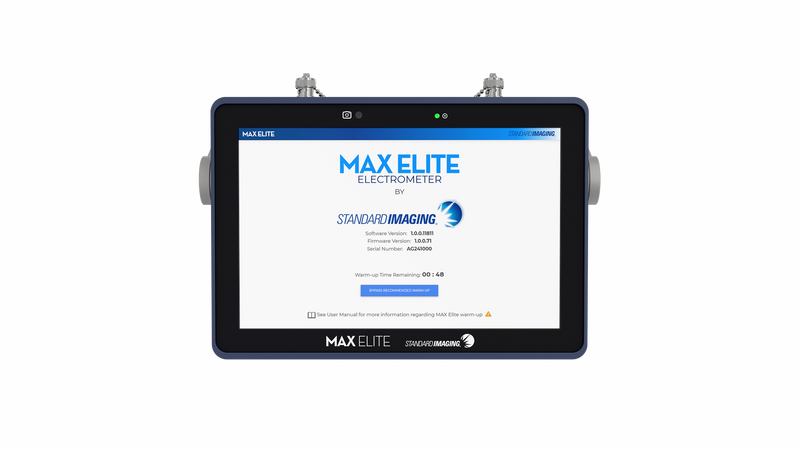

One minute warmup.
Wi-Fi capable.
Dimensions
Width 26.7 cm (10 in)
Height 8.1 cm ( 7 in)
Length 21.1 cm ( 5.5 in) 
Weight 2. 3 kg (5.05 lbs) (4-channel)
Resolution 1fA, 10fC (1-channel); 0.1fA, 1fC (2-channel, 4-channel)
Key Specifications
Channels 1, 2, or 4 channels – factory configurable.
Measuring Range IEC60731 Reference Class LOW:  0.4000 pA - 1.0000 nA, 0.4000 pC – 100 mC
HIGH: 0.0400 nA - 1.0000 µA, 0.0400 nC – 100 C
Bias Voltage 0, (±) 10 - 1000 V in 1 V increments
10-24VDC +/- 10%
25-49VDC +/- 5%
50-1000VDC +/-1%
1 uA max
Range Switching User selectable – High and Low
Repeatability Low range: <= +/-0.25%
High range: <= ± 0.15%
Long Term Stabilization Time <= ± 0.5% over 1 year
Stabilization Time <= ± 0.1%
Non-Linearity <= ± 0.25%
Zero Drift <=: ± 0.25%
Zero Shift <= ± 0.25%
Response Time (90%) Low range rate: 2.20 seconds, High range rate: 2.20 seconds.
Low range charge: 1.95 seconds, High range charge: 0.26 seconds
Main Software Functions Individual measurement for Channel 1, Channel 2, Channel 3, or Channel 4; Channel 1 & 2 measurement; Four Channel measurement; Chamber Library; Check Source Database; Preferences
Charge Collection Modes Timed Mode - Selectable timer from 1 to 86400 seconds in 1 second increments. 500 repeated collections.
Continuous Mode (Manual Start/Stop) - Press Start to begin collection and Stop to end
Trigger Mode – current exceeding pre-selected trigger values starts measurement, and current below pre-selected stop trigger value stops collection
Countup/Countdown Resolution 1 Second
Trigger Levels for Charge Collection Start value must be larger than stop value. Low Range 10fA – 1nA. High Range 10pA – 10nA
Operating Parameters: Temperature 15 to 35 °C
Operating Parameters: Relative Humidity 20 to 80% non-condensing
Storage Parameters: Temperature -15 to 50 °C
Storage Parameters: Relative Humidity 10 to 95% non-condensing
Display Color LCD IPS touch screen. WXGA (1280x800) resolution, 10.1” diagonal
Code Reader Data Matrix Code Reader

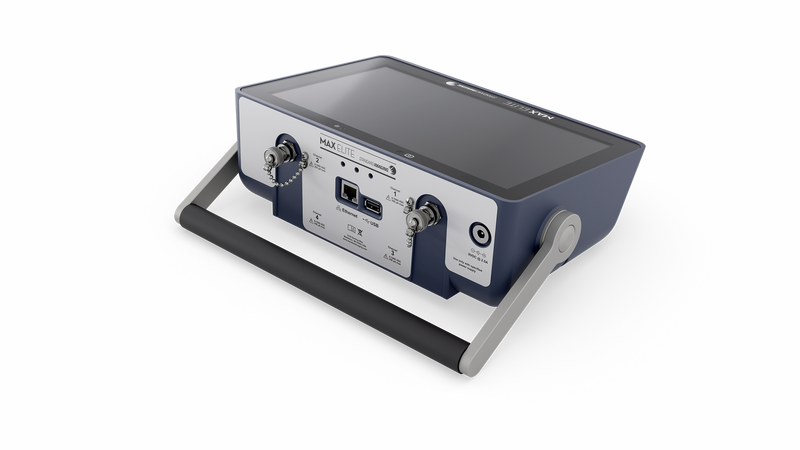

Input Connection BNC two lung triaxial connectors (TNC option is available)
Zeroing Zero via button push - Display indicates zeroing in progress 1-30 seconds.
Connectivity Ethernet 10/100Mbit
USB 2.0 (keyboard, flash drive, or mouse support)
Wi-Fi Dual Band 2.4/5GHz, 802.11ac/a/b/g/n.
Real-Time Clock On board, for timekeeping and data time stamp
Audio On board speaker for audio feedback
Mode of Operation Continuous, Timed, or Triggered
Power Requirements 100-240 VAC, 50/60 Hz input to external power supply, 9 VDC, 2.0 A power supply output to electrometer input, Globtek®, Inc. model GTM 96180-1811-2.0-T.
The use of any other power supply and using alternates other than the UL/CSA recognized power cord can degrade minimum safety. The proper replacements from Standard Imaging, Inc. are required for compliance with the requirements of IEC 60601-1. 
Product Standards IEC 60601-1-2 Edition 4.1:2020
IEC 60601-1-6:2010/AMD2:2020, IEC 60601-1:2005/AMD2:20201
IEC 60731 (Reference Class)2 
1 Externally Certified; 2 Designed to Meet
Selectable Display Resolution LOW: Rate mode/Charge mode: 0.001 pA / 0.001 pC or 0.0001 pA / 0.0001 pC
HIGH: Rate mode/Charge mode: 0.001 nA / 0.001 nC or 0.0001 nA / 0.0001 nC
Chamber Library Calibration Coefficients
Ampere System Factors
Nsk:µGym²/(h*A)
Nsk:Gym²/(h*A)
Nx,sk:Rm²/(h*A)
NA:GBq/A
NA:Ci/A
ND,W:mGy/(sec*A)
NA:MBq/A
NA:mCi/A
Coulomb System Factors
Nk:Gy/C
Nx:R/C
NGas:Gy/C
ND:Gy/C
ND,W:Gy/C 
