QA BeamChecker™ Pro

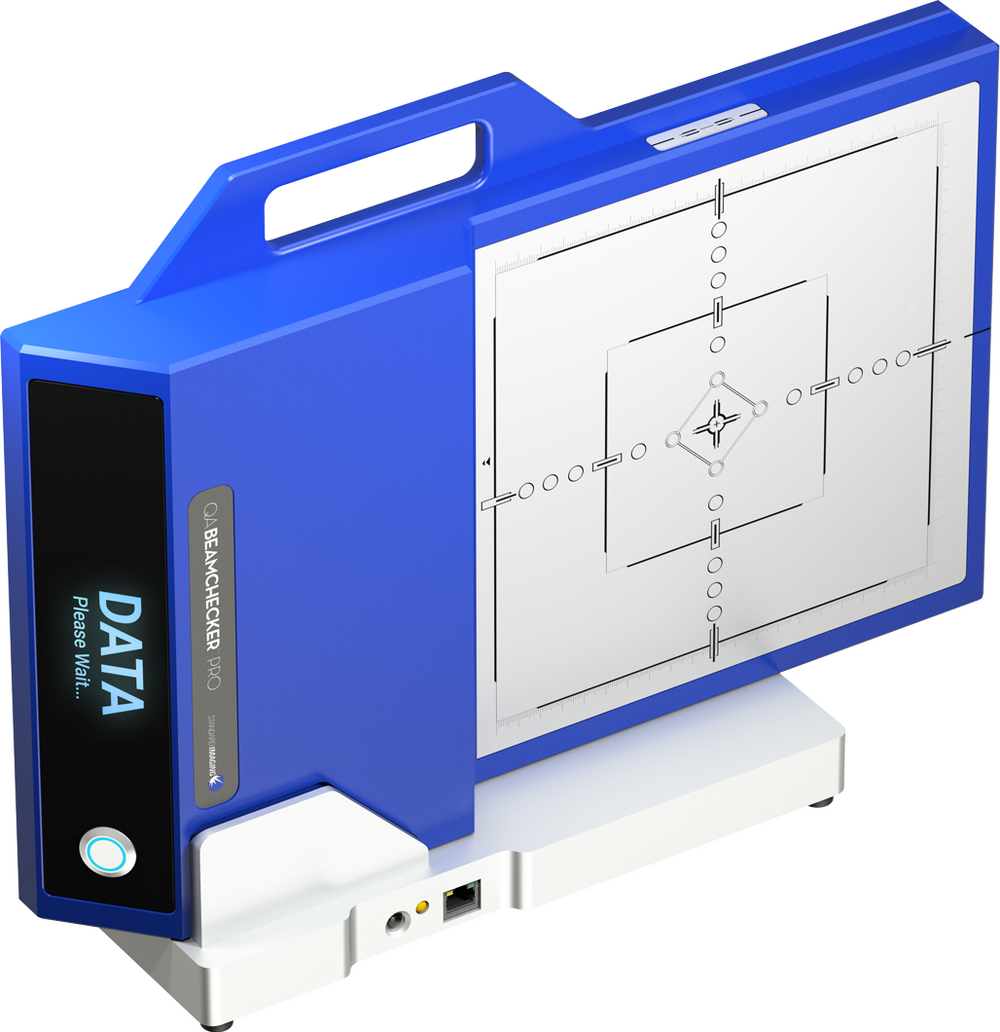

Qabc pro data cradle 1400

Category

Qabc pro data cradle 1400

Specifications

Display 5.5-inch OLED capacitive touch screen, 256x64 Dot Matrix
Dimensions Height 6.0 cm (2.36 in) // Width 30.5 cm (12.0 in) // Length 42.5 cm (16.74 in) // Weight 5.7 kg (12.6 lbs)
Device Memory Capacity Stores up to 650 measurements before transfer required
29 Vented Ionization Chambers, Fully Guarded 1 center detector // 16 quadrant detectors (7.0 mm Ø) // 4 energy identification chambers (7.0 mm Ø) // 8 linear detectors (3.1 mm x 12.4 mm)
Chamber Volume 0.077 cc
Parallel Plate Separation 2.0 mm
Collection Electrode 0.7cm diameter
Inherent Water-Equivalent Buildup 1.3 cm
Electronics Dose Monitoring Diode 1
Supported Energies Photons (filtered and FFF) 60Co to 25 MV // Electrons 4 MeV to 25 MeV
Dose Rate Minimum: 50 MU/minute // Maximum: 2400 MU/minute
Field Sizes 10 cm x 10 cm and 20 cm x 20 cm
Battery Rechargeable LiFePO4 - approximately 8 hours of continuous use
Charger Input 90 – 240 VAC, 50-60 Hz, EN/IEC 60601-1 approved
Connectivity Ethernet for Static and DHCP; Wi-Fi for DHCP only
Power/Data Cradle Height 8.3 cm (3.26in) // Width 10.2 cm (4.00 in) // Length 29.2 cm (11.50 in) // Weight 1.6 kg (3.6 lbs)
Product Standards IEC 60601-1-2 Edition 4.1:2020 // IEC 60601-1-6:2010/AMD2:2020 // IEC 60601-1:2005/AMD2:2020 [Externally Certified]
Download PDF
