Blue Water Phantom

Photon Beam QA

Blue water wave 1400 transparent

Workflow

Modality

Task Group

Category

Blue water wave 1400 transparent

Sizes Available

30 cm x 30 cm, 20 cm x 20 cm (Standard)

Thicknesses Available

0.2 cm, 0.3 cm, 0.5 cm, 1 cm, 2 cm, 3 cm, 4 cm, 5 cm, 6 cm (Standard)

A New Standard in Water-Equivalency

Water equivalent material within 1.0% for photons, and is free of contaminants and air. Slabs from this unique material are exceptionally strong and will not stick together when stacked or stored. Not affected by changes in temperature or humidity and can be used for electrons.

Learn More
Blue Water 1

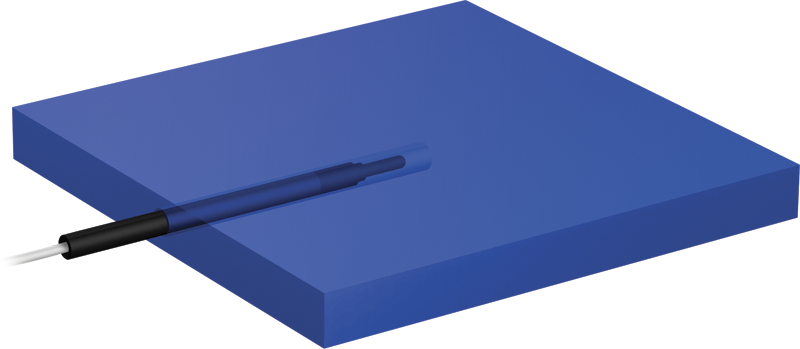

Unique Chamber Slab Design

In slabs that are at least 2 cm thick, cavities are available to accommodate parallel plate ion chambers or thimble type ion chambers. Instead of having multiple slabs for each thimble type ion chamber, a single ion chamber slab is used with interchangeable ion chamber plugs.

Learn More
Blue Water 2

Specifications

Jump to:
Blue Water Specifications
Density 1.09 g/cm3
Thickness Tolerance +/- 0.15 mm
Length and Width Tolerance +/- 0.5 mm
Physical Form Square Slabs (Standard)
Sizes Available 30 cm x 30 cm, 20 cm x 20 cm (Standard)
Thicknesses Available 0.2 cm, 0.3 cm, 0.5 cm, 1 cm, 2 cm, 3 cm, 4 cm, 5 cm, 6 cm (Standard)
Other Options Blank Cavity, Milled for Parallel Plate Chamber

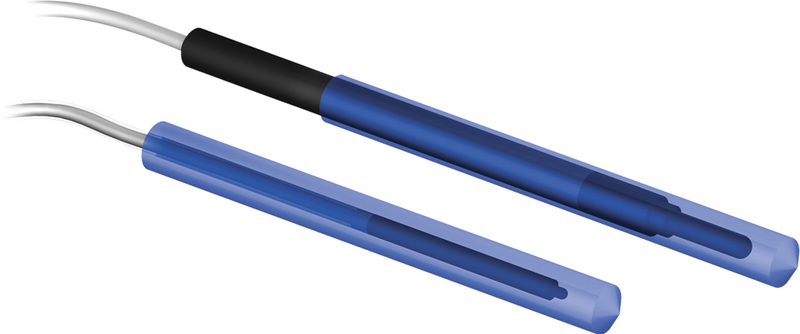

Blue Water Phantom Plug with Cavity
A12 Farmer-Type Chamber
A14SL Slim Line Microchamber
A16 Micropoint Chamber
A19 Classic Farmer Chamber
Download PDF
