LUCY™ MR

MR-Guided SRS QA Phantom

Imt maxhd main

Modality

Category

Imt maxhd main

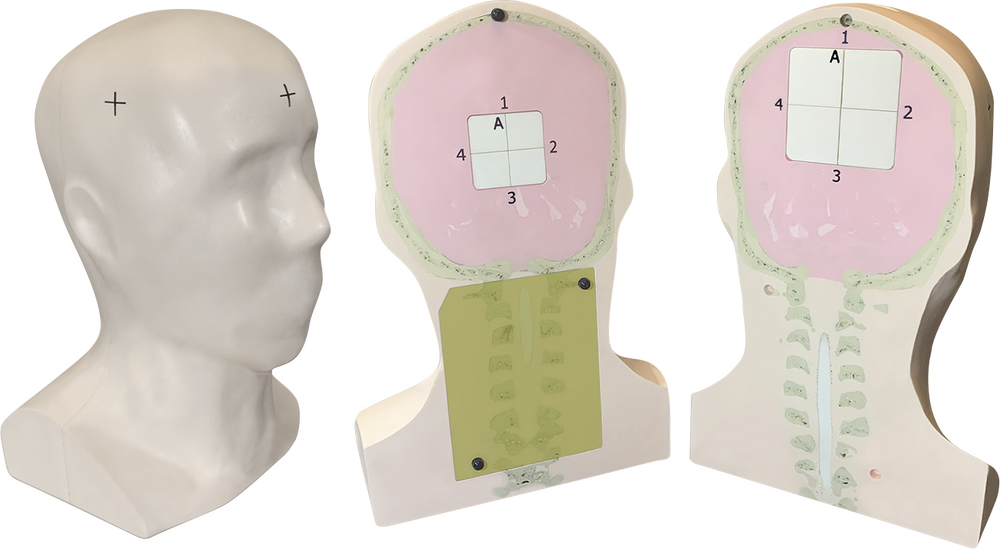

First of Its Kind

SRS QA Phantom that provides Fully-Anthropomorphic, High-Definition imaging capability for IGRT QA with MR, CT, kV and MV modalities.

End-to-End System Testing

The anthropomorphic features include skull, brain, vertebrae, sinus cavities, cortical and trabecular bone structure, larynx, trachea, and oral cavities.

MR-Visible

Cast from new proprietary materials, the entirety of LUCY MR's soft tissue anatomy is MR-Visible, providing truly comprehensive End-To-End SRS QA across MR-Guided and MR-Simulation systems.

SRS QA Commissioning

Confirm accurate setup and function of SRS planning and delivery systems with MR-Guided capability.

TG-101 and TG-135

Supports multiple AAPM TG SRS testing protocols through:

  • Complete End-To-End Tests
  • Winston-Lutz test
  • Isocentric Verification
  • Bony Anatomy Localization
  • Laser Alignment
  • Localization / Repositioning with Couch Shifts
  • Patient Orientation / Image Transfer QA
  • IGRT QA for MR, X-Ray and On-board kV and MV images, including CBCT
  • OSMS or SGRT Optical System Positioning QA
  • MR/CT Image Fusion Multiple Met Dosimetry
Learn More

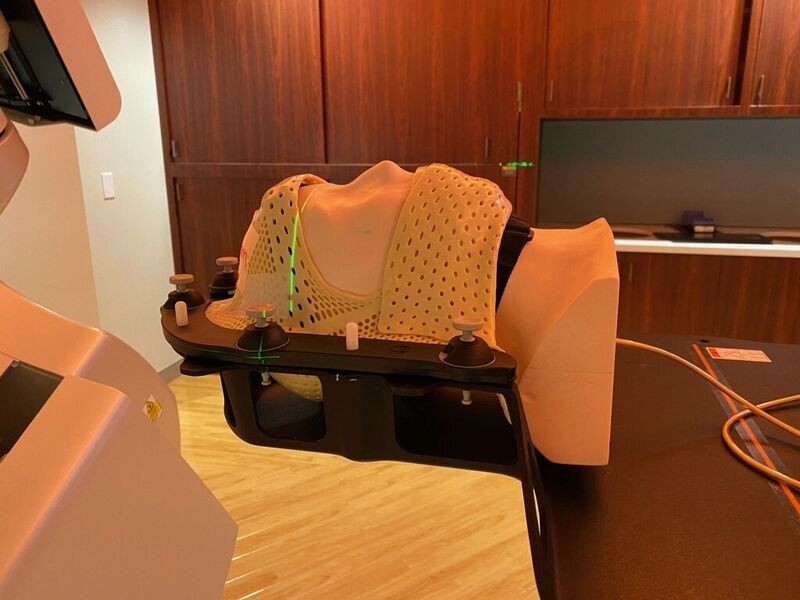

IMT MAXHD Photo

3D Film Target Inserts

3D Target Inserts are bisected by two orthogonal film planes

Posterior 3D Film Target Insert

  • 0.625" Spherical Target
  • Bisected by two orthogonal film planes


Anterior 3D Film Target Insert

  • 1.0" Spherical Target
  • Bisected by two orthogonal film planes
Learn More
Lucy mr inserts edited-2

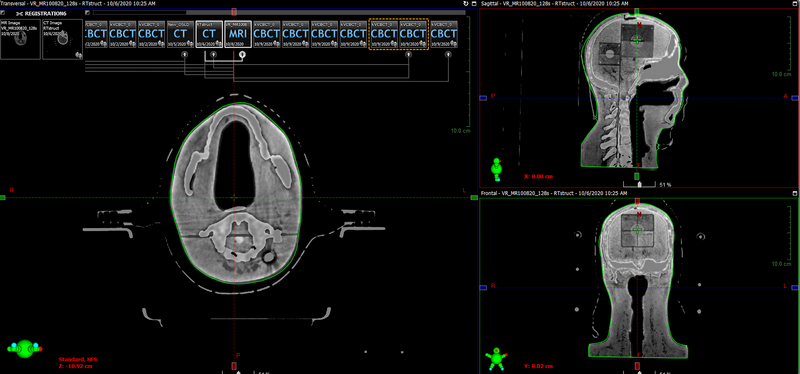

High-Def MRI + CT

Fully-anthropomorphic phantom features with full MR visibility.

Learn More
Lucymr scan

Specifications

Jump to:
Anterior Section 6 cm3 Insert Pocket
Posterior Section 4 cm3 Insert Pocket, Large Coronal Film Plane, and Ion Chamber Cavity
Anthropomorphic Anatomy Size, Shape, and Weight similar to human head.
Skull, brain, spinal cord, oral and nasal cavities, and simulates cortical and trabecular bone densities in the skull and spinal cord.
Targets Up to 13 distinct targets
