Designed to reduce setup time, the system lets users switch detectors quickly without re-establishing the isocenter or alignment. That means fewer interruptions and a more efficient workflow from one scan to the next.
Intuitive scanning controls, automated queueing, and built-in analytics make it easy to generate, compare, and validate measurement results. From overlay analysis to gamma evaluation, the software supports fast decision-making with clear, actionable data.
Clean data output and flexible export formats ensure a smooth hand-off to treatment-planning systems and reporting tools. DoseView 3D helps standardize QA processes across linacs and teams, improving productivity without compromising accuracy.

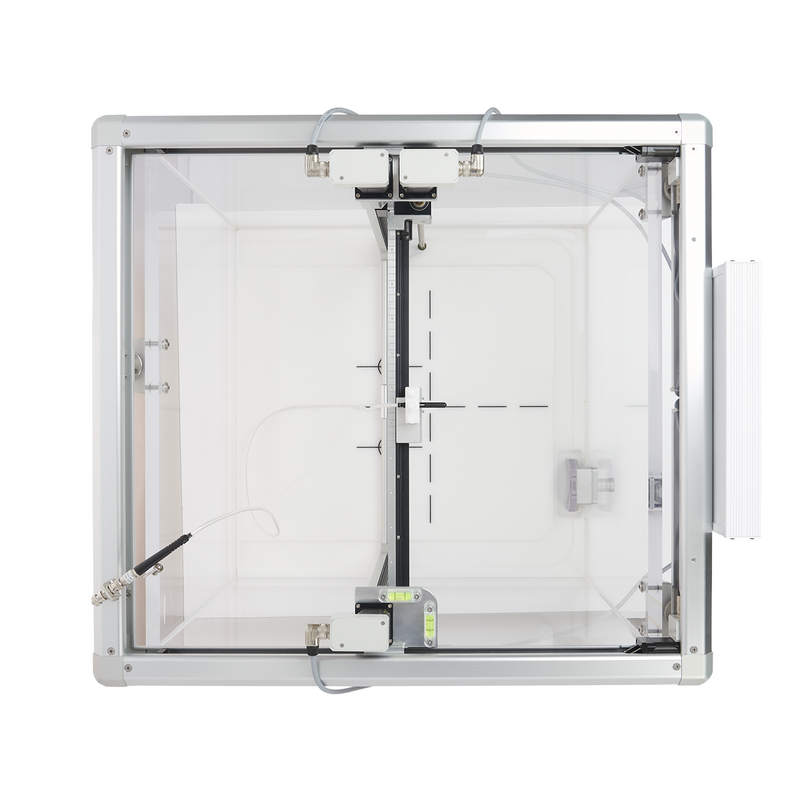

Manufactured with a rigid, aluminum frame and stainless steel leadscrews, the DoseView 3D provides a consistent platform for repeated QA testing. Meticulous construction ensures consistent measurement accuracy within ±0.1 mm per axis.

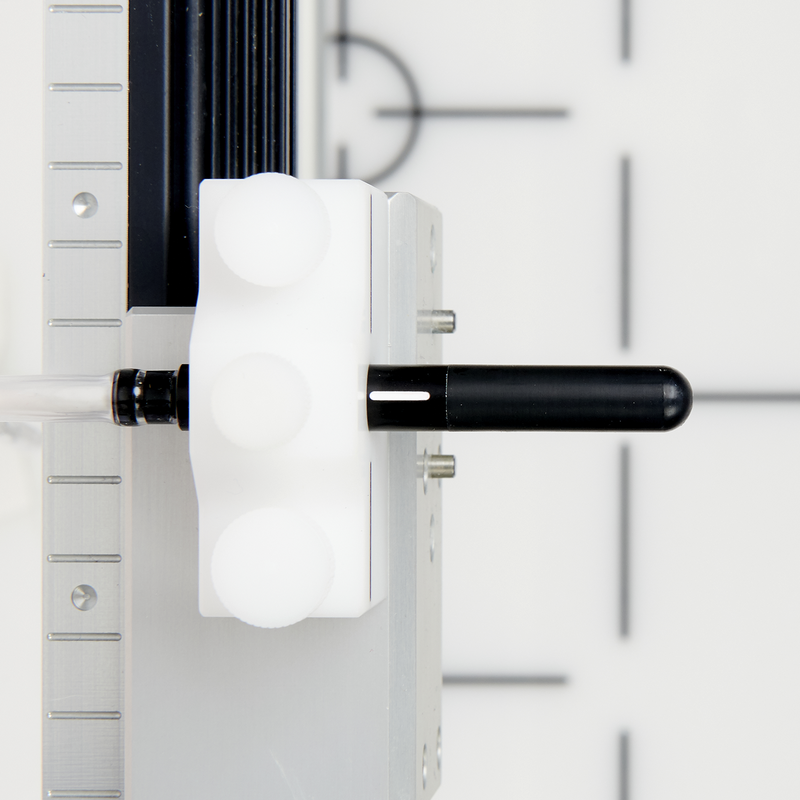

Swap detectors without resetting isocenter/origin with the Detector Alignment System. The system aligns the center of each detector.
The cumulative benefits of high precision build quality and robust software lead to results you can trust.
Manufactured with a rigid, aluminum frame and stainless steel leadscrews, the DoseView 3D provides a consistent platform for repeated QA testing. Meticulous construction ensures consistent measurement accuracy within ±0.1 mm per axis.
Swap detectors without resetting isocenter/origin with the Detector Alignment System. The system aligns the center of each detector.
DoseView enables detailed scan comparisons through visual overlays, direct metrics, and gamma evaluations. Users can track Linac performance over time or across matched machines using customizable dose difference and distance-to-agreement values. Features include isodose curve PDF reporting and gamma graph analysis.
Careful attention to detail and the highest grade materials lend itself to 0.1mm accuracy throughout the system. Precise and uncomplicated 3-point leveling makes setup a breeze and provides results you can count on.
Long time proven electrometer experience and the highest quality hardware gives reliable measurements and allows for easy to analyze results. Automated features like scan ques and SmartSelects save time. Complete control over your scan parameters lets you fine tune your scanning for you specific needs.
Excellent raw data output, requiring minimal post scan processing, means reliable results. Fast Export in multiple formats and to numerous Treatment Planning Systems at no additional cost makes commissioning easy and economical.
Lorem ipsum dolor sit amet, consectetur adipiscing elita. Sed nec tortor a nisi gravida consequat. Quisque vel euismod dui. Curabitur feugiat fringilla erat, eu cursus nisl feugiat ac. Pellentesque efficitur vulputate turpis in viverra. Etiam.
Lorem ipsum dolor sit amet, consectetur adipiscing elita. Sed nec tortor a nisi gravida consequat. Quisque vel euismod dui. Curabitur feugiat fringilla erat, eu cursus nisl feugiat ac. Pellentesque efficitur vulputate turpis in viverra. Etiam.
Lorem ipsum dolor sit amet, consectetur adipiscing elita. Sed nec tortor a nisi gravida consequat. Quisque vel euismod dui. Curabitur feugiat fringilla erat, eu cursus nisl feugiat ac. Pellentesque efficitur vulputate turpis in viverra. Etiam.
“The new DoseView software significantly improved the efficiency with which we perform our water tank scans and machine calibration. The interface was very user-friendly and offered a wide variety of tools for data processing and analysis.”
| Motion Control System | |
|---|---|
| REF Number | DoseView 3D REF 92260 DoseView 3D Lift and Reservoir Cart REF 72260 |
| Measurement Speed | 50 mm/s |
| Positioning Accuracy | ± 0.1 mm per axis |
| Positioning Repeatability | ± 0.1 mm per axis |
| PC Communication | Wireless or wired via RS-232 |
| Control Method | PC or via wireless pendant |
| Water Phantom (Acrylic Tank Only) | |
| Outer Dimensions | [ length x width x height ] 692 mm x 683 mm x 542 mm |
| Scanning Dimensions | [ length x width x height ] 480 mm x 480 mm x 410 mm |
| Wall Thickness | 12 mm |
| Other | Replaceable Fill/Drain Port |
| Lift Cart and Reservoir | |
| Outer Dimensions | [ length x width ] 1247 mm x 762 mm |
| Vertical Range | 685 mm - 1185 mm (tank base to floor) |
| Water Pump | Electric fill, gravity drain |
| Water Capacity | 60 gal (227 liters) |
| Fill Speed | 6-7 min |
| Drain Speed | 16-20 min |
| Precision Positioning Platform | |
| X / Y Fine Adjustment | ±12.5 mm |
| Fine rotational adjustment | ±1° |
| Discreet engagement | 10°, 45°, and 90° intervals |
| DoseView 3D Electrometer | |
| Channels | 2 |
| Bias Voltage | 0, ±150 to 450 (VDC) in 50 volt increments |
| Range | 2 pC - 999,999 nC |
| Resolution | 10 fC |
| Connector Type | Triaxial BNC or TNC (BNC unless specified) |
| Exradin® A28 Ion Chamber | |
| Collecting Volume | 0.125 cc |
| Centroid of Collecting Volume | 4.47 mm from tip of chamber |
| Collector Diameter | 1.0 mm |
| Outside Diameter of Shell | 8.0 mm |
| Nominal Leakage | +/- 10 fA |
| Shell, Collector, Guard Material | Shonka air-equivalent plastic C552 |
| Waterproof | Yes |
| DoseView 3D Software System Requirements | |
| Operating System | Windows® 10 Professional, 64-bit Recommended |
| Processor | Intel® or AMD®, 350 MHz or greater |
| Memory | 256 MB or greater |
| Hard Drive | 30 MB or greater |
| Screen Resolution | 1024 x 768 or greater |
| CD-ROM Drive | 2X speed or greater |
| Connectivity | 9-pin serial RS-232 port or USB port with USB to RS-232 adapter |
