Daily QA in 5 Minutes
Therapist-friendly phantom that quickly performs Daily CT QA when paired with PIPSpro Software. Easily access reports, data trending, and data processing results.
All in One
Replaces all your Daily CT QA Phantoms. Save time and setup variability.
Better Treatment Quality
Prevent or immediately detect virtually any CT/SIM-related NC’s that can affect downstream planning, dosimetry, and delivery activities.
Integral for QA Routines
Ensure the critical elements of the CT Simulation process (people, registration hardware, couch, external lasers, internal lasers, scanner, various software systems, and their collective coincidence) remain within established conformance parameters.
New! Software for Daily QA for CT SImulator
PIPSpro Software now has a comprehensive suite of CT specific checks and data analysis tools, making daily CT QA faster, more reliable, and more comprehensive. The seamless integration empowers clinicians with a more efficient and user-friendly QA solution.
Therapist-Friendly
Light-weight. Reproducible. Efficient.
These tests provide the clinical team with daily metrics, acceptance of use, and long-term trending analysis.
Range of Tests Include:
- HU Constancy Checks
- Volume Uniformity

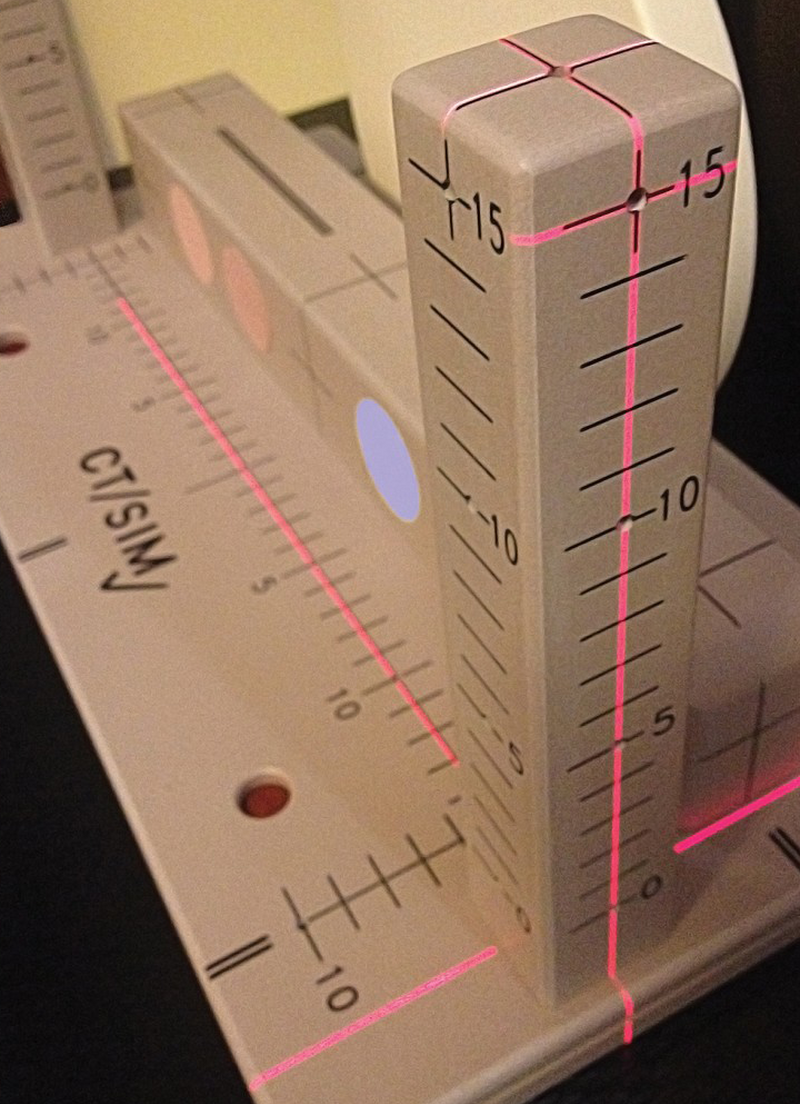

- Laser alignment in three axes
- Image orientation display
- Geometric scaling and isocenter laser localization
Key Features
Phantom Material and Uniformity Disk: Virtual Water
- 1.04 g/cm3 physical density
- 1.01 relative electron density to water
HU Constancy Density Plugs:
- Lung: .320g/cc, -650HU
- Liver: .497g/cc, -500HU
- Water: -Virtual Water
- Bone: 1.6g/cc, 640HU
Specifications
Jump to:
| Specifications | |
|---|---|
| Phantom Material/Uniformity Disk | Virtual Water |
| 1.04 g/cm3 physical density | |
| 1.01 relative electron density to water | |
| Slice Thickness Feature | Aluminum wires, 5/64" (1.984mm) diameter |
| Isocenter Localization BB | Alumina Ceramic, 3/16" (4.76mm) Dia, 3.875g/cc, ~2600HU |
| HU Constancy Density Plugs | |
| Lung | .320g/cc, ~650HU |
| Liver | .497g/cc, ~500HU |
| Water | Virtual Water |
| Bone | 1.6g/cc, 640HU |
