Advanced Electron Density Phantom

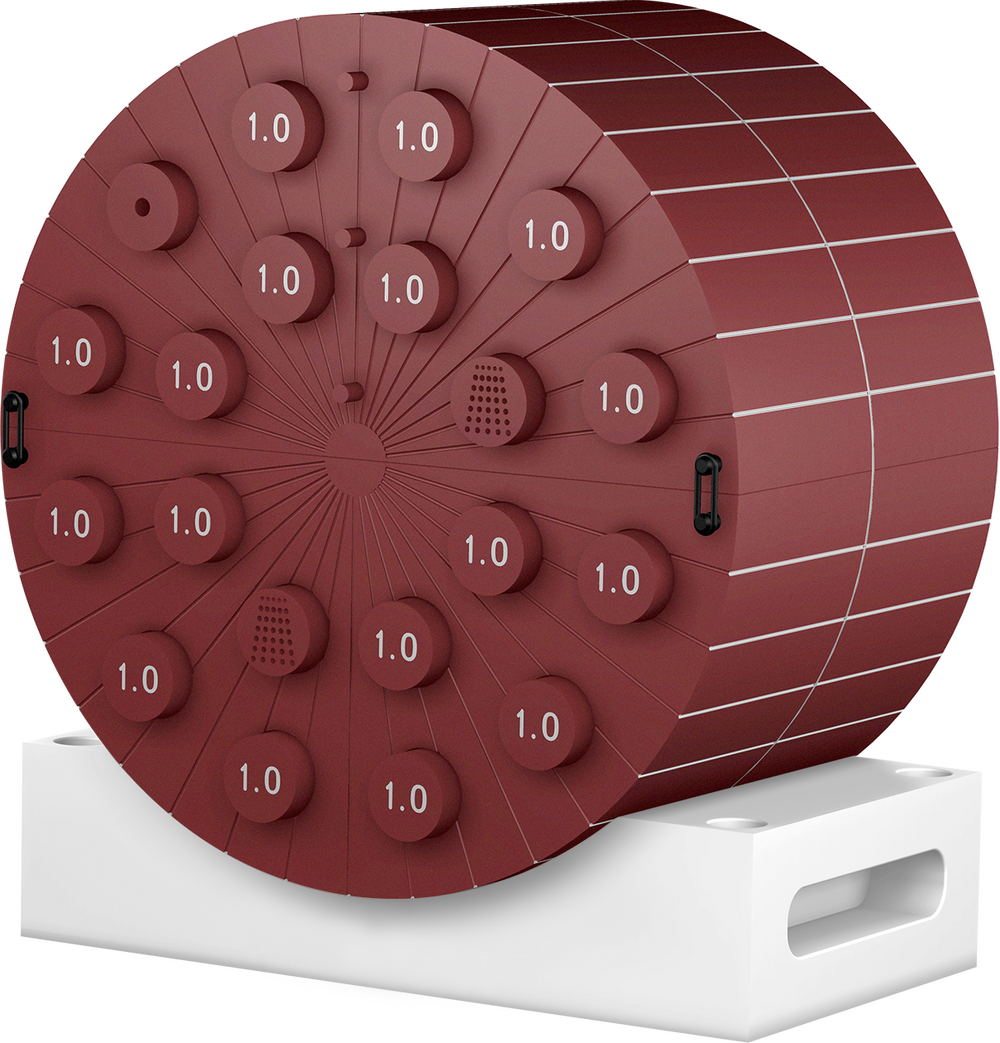

Quickarc main 1400
Quickarc main 1400

Specifications

Dimensions
Diameter 30 cm
Thickness 18 cm
Density
Physical Density 1.047 g/cc ± 0.1 g/cc
Electron Density 0.562 ± 0.003 e/g/cc
Cavities
Number ion chamber cavities 32
Number density insert cavities 20
Location Density insert cavities located at 6.5 cm and 11 cm radius
Features
Water equivalent
Film plane with reference markers on the top half
Configure with or without heterogeneities
20 cavities for density plugs located at 6.5 cm and 11.0 cm
radius
Alignment scribe lines every 10 degrees
Physical density of 1.047 g/cc ± 0.1 g/c
Standard Inserts (Material & Physical Density (g/cm3)/Electron Density Relative to Water)
455 Lung LN-300* Physical Density: 0.29 g/cm3 & Electron Density Relative to Water: 0.28
485 Lung LN-450* Physical Density: 0.45 g/cm3 & Electron Density Relative to Water: 0.44
1456 HE Inner Bone* Physical Density: 1.21 g/cm3 & Electron Density Relative to Water: 1.16
484 CB2 + 30% CaCO3* Physical Density: 1.33 g/cm3 & Electron Density Relative to Water: 1.27
480 CB2 + 50% CaCO3* Physical Density: 1.56 g/cm3 & Electron Density Relative to Water: 1.46
1450 HE Cortical Bone* Physical Density: 1.93 g/cm3 & Electron Density Relative to Water: 1.78
* (Included with purchase and includes documentation on any slight density variation)
