Specifications
Jump to:
| MiniPhantom | |
|---|---|
| REF 72208-C07 | MiniPhantom for Model A12 Exradin Farmer-type Chamber |
| REF 72208-C10 | MiniPhantom for Model A12 Exradin Farmer-type Chamber with In-Air Comparison Jig |
| Diameter | 3 cm (1.18 in) |
| Length | 20 cm (7.87 in) |
| Centroid of chamber volume | 10 cm from end of phantom |
| Material | Water-equivalent plastic |
| Alignment Marking | Fiducial marks denote chamber centroid of volume |

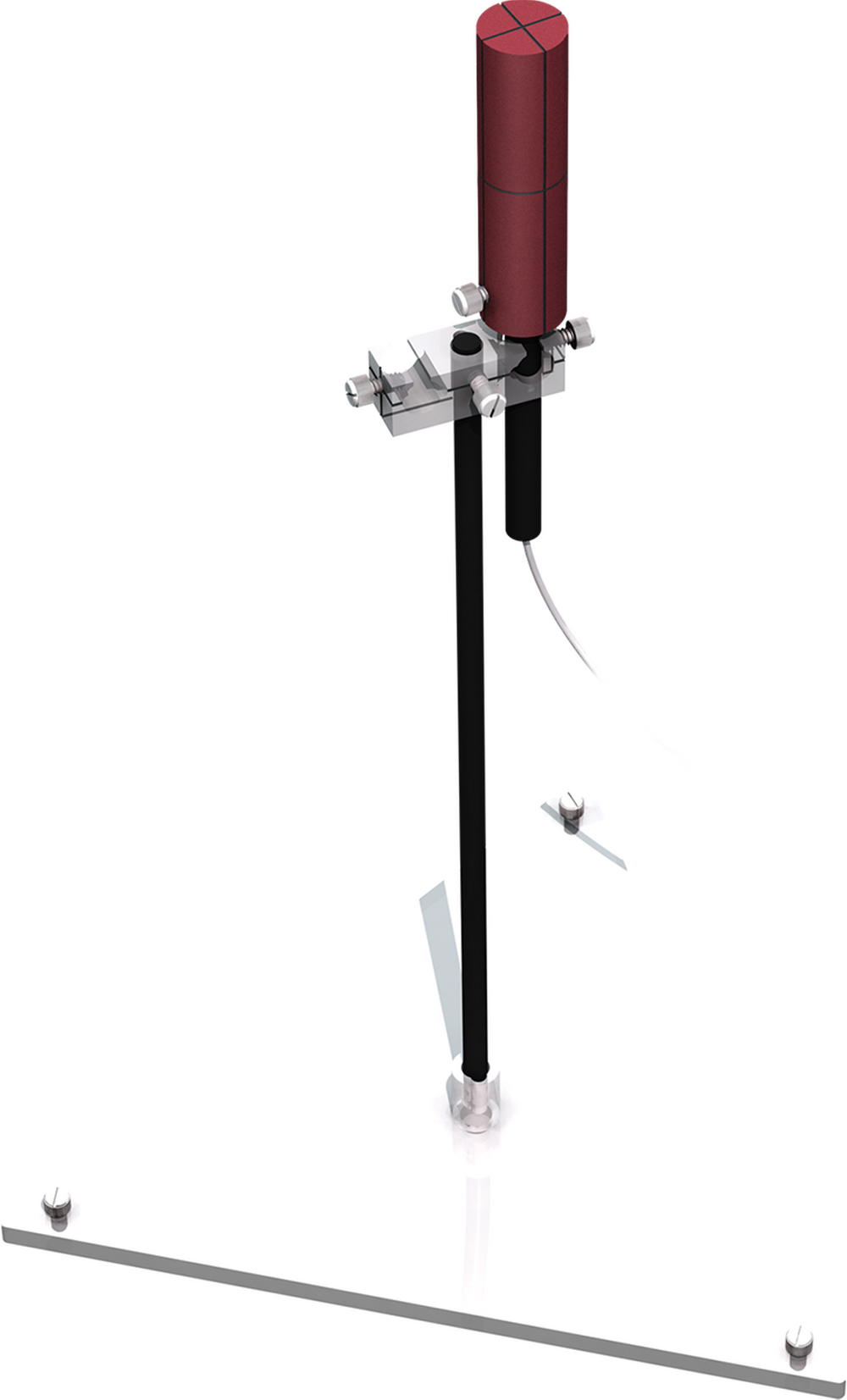

| In-Air Comparison Jig | |
| REF Number | 72193 |
| Height (Center Rod) | 40 cm (15.75 in) |
| Height (Chamber Holder) | 2.22 cm (1 in) |
| Width (Chamber Holder) | 6.35 cm (2.50 in) |
| Length (Chamber Holder) | 2.22 cm (1 in) |
| Chamber clamp size accommodations | From 1/4” to 1/2” diameter for in air comparisons |
| Base | 33.02 cm (13 in) equilateral triangle |
| Material (Center Rod) | Carbon Fiber |
| Material (Chamber Holder) | Polycarbonate |
| Material (Base) | Acrylic |
| Material (Screws) | Nylon |
| Alignment Marking | Fiducial marks on clamp assist in laser alignment |
